Overview of 9VP series

Equipped with a AMD VP1202 (or 1502) component with Dual Arm® Cortex®-A72 and Programmable Logic based on 7nm. The module features 3 instances of 72 bit wide DDR4 memories operating at 3.2Gt/s, NRZ GTY transceivers to 32Gbit and PAM4 transceivers operating at 56Gbit. embedded IP supports MacSec with 400 or 800 Gbit of throughput.

Overview of 9VP series

Equipped with a AMD VP1202 (or 1502) component with Dual Arm® Cortex®-A72 and Programmable Logic based on 7nm. The module features 3 instances of 72 bit wide DDR4 memories operating at 3.2Gt/s, NRZ GTY transceivers to 32Gbit and PAM4 transceivers operating at 56Gbit. embedded IP supports MacSec with 400 or 800 Gbit of throughput.

2023-08-02T12:16:00+02:00

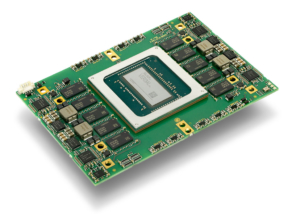

KRM-9VP1202

Main Product Highlights:
-Xilinx Versal PREMIUM
-XCVP12021MSEVSVA2785
-28 x 32 Gb/s NRZ Transceivers
-20 x 56Gb/s PAM4Transceivers
-3x 72 bit 8GB DDR4 @3.2GT/s
-4x XPIO Bank on connector
-2x MIO Bank on connector

This module is in early access
