Main product highlights
– AMD Versal RF series
– 16x 8 GSPS ADCs
– 16x 16 GSPS DACs
– Transceivers
– PL DDR4
– other points
KRM-12VR1602 RFSoC Module
Description

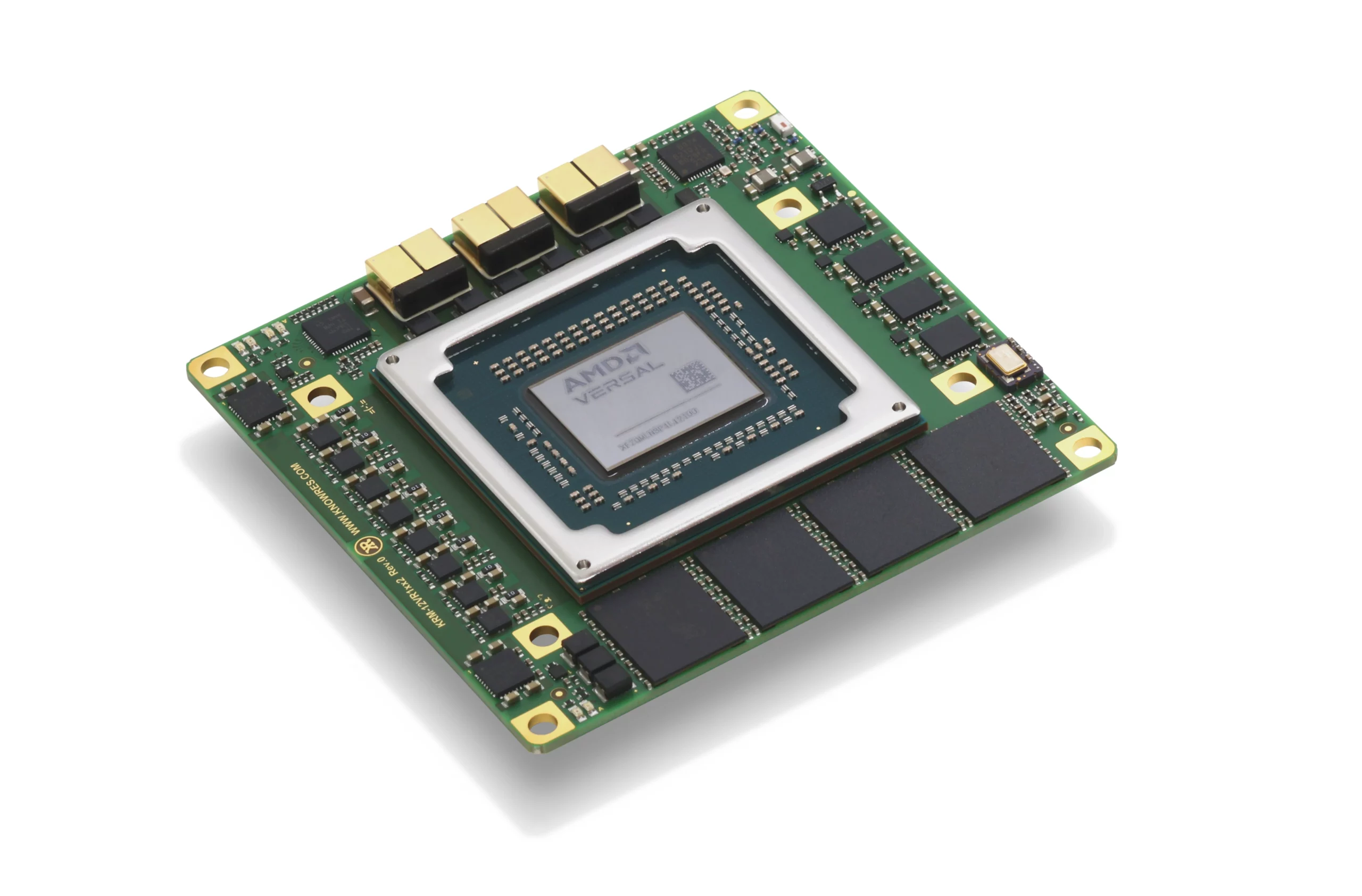

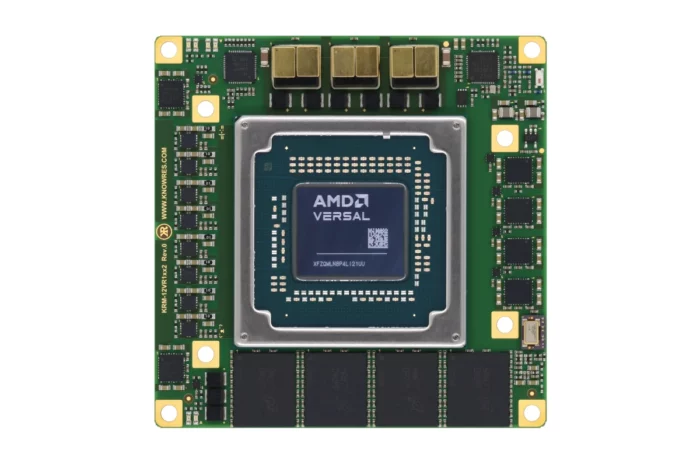

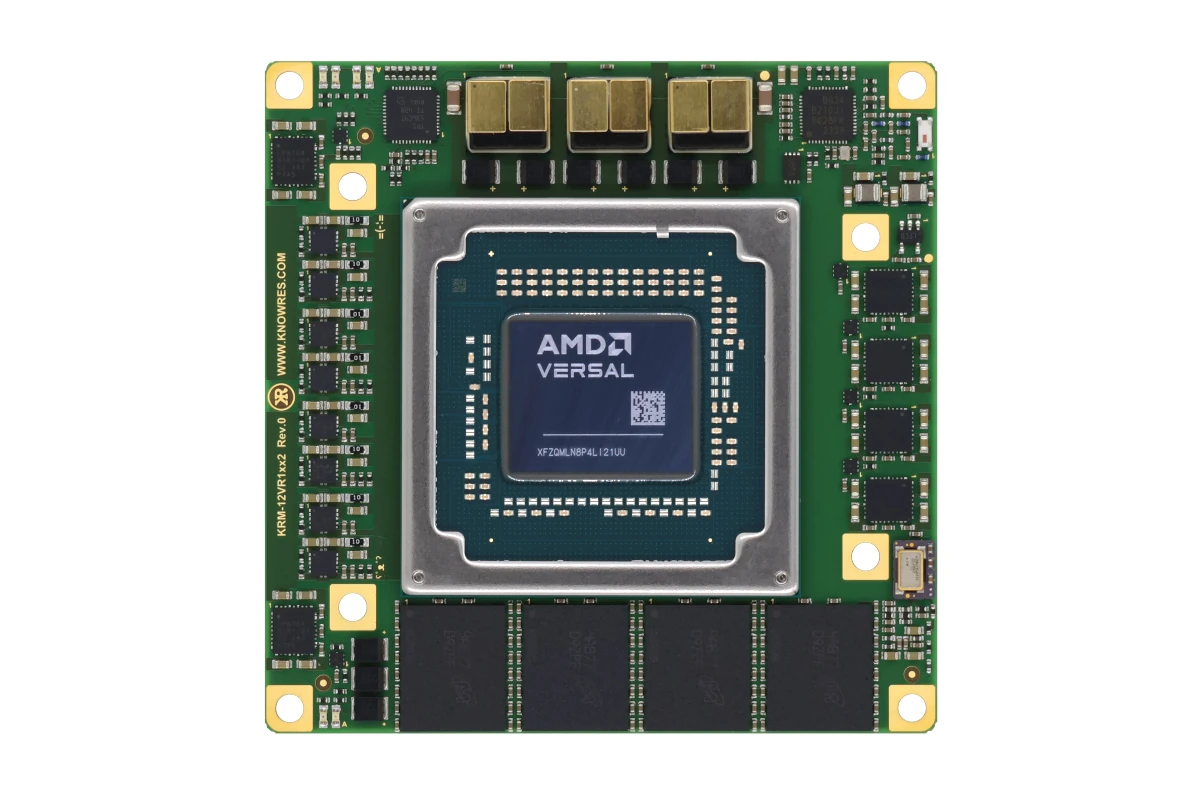

KRM-12VR1602 RFSoC Module with AMD Versal RF
The KRM-12VR1652 RFSoC module is based on the high performance AMD Versal RFSoC. The module’s sophisticated engineering enables the design of compact, complex multi module phased array systems.
Key Features
RFSoC FPGA:
Analog Interfaces:
16 ADCs @ up to 8 GSPS
16 DAC @ up to 16 GSPS
Hard RF processing IP:
4 LDPC decoders
224 Channelizers
28 iFFT/FFT blocks
FPGA fabric:
551040 LUTs
2256 DSP58
On board Memory:
4 Channels of LPDDR5 RAM each with 8GB of memory depth
eMMC 64GB
OSPI configuration
Processing System:
Dual-core ARM Cortex®-A72
Dual-core ARM Cortex®-R5F
Module I/O:
12 GTYP transceivers
8 GTM transceivers
Power:
12V input (11.5V – 12.5V)
Dimensions:
80 x 80 mm
Additional information
| SoC Architecture | AMD Versal RF VR1602 |
|---|---|
| Analog Bandwidth | 18 GHz |
| RF-ADC Channels | 16x 8GSPS |
| RF-DAC Channels | 16x 16 GSPS |
| Processor | Dual-core Arm® Cortex®-A72 + Dual-core Arm Cortex-R5F |
| LPDDR4 | 4x 8 GBytes |
| PL Memory | ??? |
| PL Transceivers | 12x GTYP @ 32Gbit |
| Storage | eMMC to 64GB |
| Dimensions | 80 x 80 mm |
Variants
| MODULE | Q 1-10 | MOQ |
|---|---|---|
| KRM-12VR1602 | Inquire | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
MOQ1 also indicates that sample stock is usually available with no lead time.
Matching Carriers
Coming soon
