Main Product Highlights:
-Achronix Speedster AC7t1500
-32 112Gb Transceiver
-On board low jitter clock sources
-32GB GDDR-6 RAM with 3.5 Tbps bandwidth
-Quad QSPI configuration memory
-GPIO and DDR4 interface on connector
-12V single supply
-KR housekeeping bus for multi-module deployments

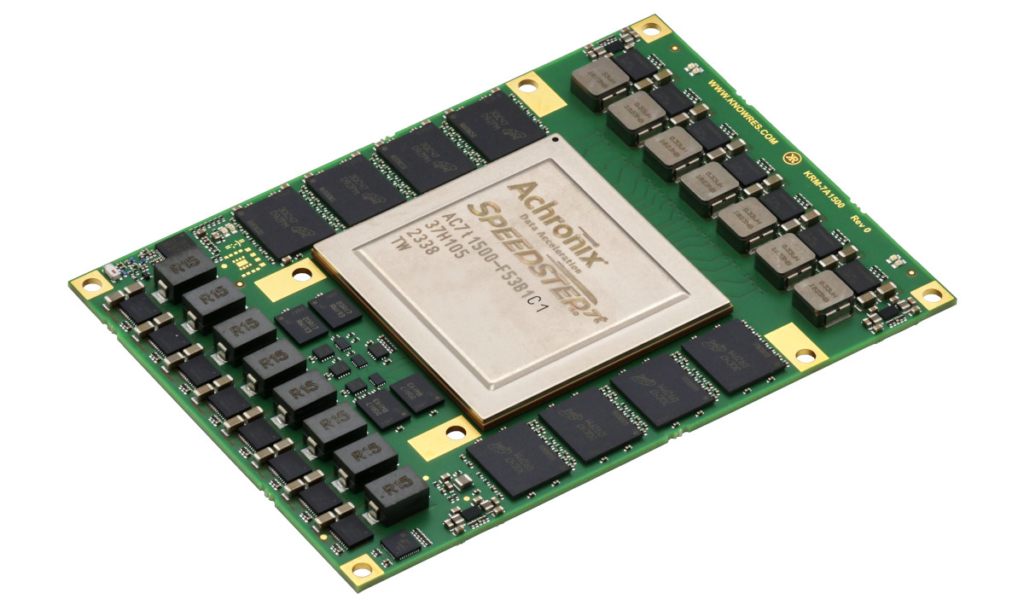

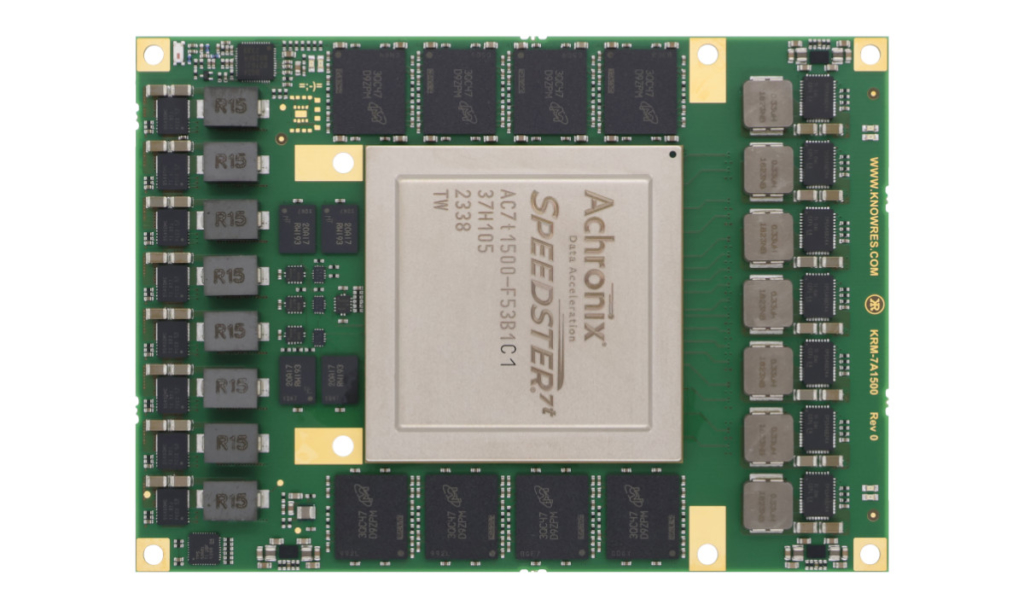

A compact, high-end module that features an Achronix Speedster AC7t1500 part embedded in a most versatile design so that it can be optimally utilized in a multitude of applications. Only a 12V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. On-board quad QSPI memories allow for quick configuration. Our proven housekeeping bus ensure that this SoM can be integrated in a robust multi FPGA/SoM design with deterministic, system-wide power up behavior.
Key features:
| Core FPGA | Achronix Speedster7t AC7t1500 |
|---|---|
| High-Speed Serial | 32x 112 Gbps PAM-4 Transceivers |
| Memory | 16x GDDR6 (x32) high-bandwidth memory on-board |
| Configuration | Quad QSPI Flash for rapid boot |
| Clocking | On-module ultra-low jitter synthesizers for 112G links |
| Power Input | Single 12V Supply (400W Max Capability) |
| Dimensions | 120 x 90 mm (16mm height with heat spreader) |
| Interconnect | 2x Samtec APM6 (High-density high-speed) |
| System Management | Dedicated Housekeeping Bus (deterministic power-up) |
| MODULE | Q 1-25 | MOQ |
|---|---|---|
| KRM-7A1500-32 | Inquire | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
KRC-7 KIT available Q4 2025
Datasheet access under NDA
For more information inquire at inquiry@knowres.ch
Nothing compares… 😉
