Overview of Carriers

The KRC Carrier range compliments the KRM modules as it provides frequently used peripheral circuits such as Ethernet Phy’s, USB ports, SD card slots and console connectivity. The carriers also perform input power monitoring and provide a stable operating voltage for the modules. I/O expansion is possible via FMC connector and/or PMOD compatible solder pads and KR specific flex cable connectors.

Overview of Carriers

The KRC Carrier range compliments the KRM Modules as it provides frequently used peripheral circuits such as Ethernet Phy’s, USB ports, SD card slots and console connectivity. The carriers also perform input power monitoring and provide a stable operating voltage for the modules. I/O expansion is possible via FMC connector and/or PMOD compatible solder pads and KR specific flex cable connectors.

2024-08-12T16:24:35+02:00
Top view of KRC-6000 evaluation carrier with heat sink on KRM-6 RFSoC

KRC-6000 Evaluation Carrier Kit

Main Product Highlights:

  • Accepts all KRM-6ZUxxDR variants
  • Modular set with separate PCBs
  • RF Front End ADC & clocks
  • RF Front End DAC
  • Serial transceiver interface & power
  • MIO Peripherals board
  • NVMe adapter
  • USB serial ports to BMC
  • Single 12V supply
2024-12-06T11:56:44+01:00

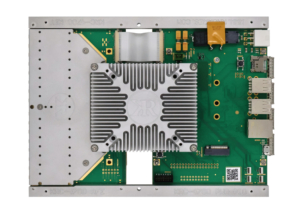

Top view of KRC-4700 evaluation carrier with heat sink on KRM-4 RFSoC.

KRC-4700 KIT

Main Product Highlights:

  • Accepts all KRM-4ZUxxDR variants
  • Modular set with separate PCBs
  • RF Front End
  • RF Sample clocks
  • PS IO
  • Transceiver interface
  • USB serial ports to BMC
  • Single 12V supply



2024-08-12T16:35:05+02:00

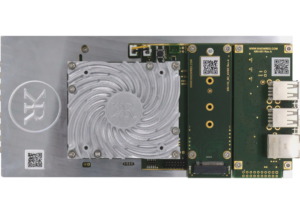

Top view of KRC-2000 evaluation carrier with heat sink on KRM-2 RFSoC

KRC-2000 KIT

Main Product Highlights:

  • Accepts all KRM-2ZUxxDR variants
  • Modular set with separate PCBs
  • RF Front End ADC & clocks
  • RF Front End DAC
  • Serial transceiver interface & power
  • MIO Peripherals board
  • NVMe adapter
  • USB serial ports to BMC
  • Single 12V supply
2024-08-12T16:35:28+02:00
Top view of KRC-3701 evaluation carrier for KRM-3Z7xxx & KRM-3ZUxxx FPGA module series.

KRC-3701 KIT

Main Product Highlights:

  • 4x USB host (attach keyboard, mouse W-LAN modules)
  • Gigabit Ethernet Phy with Magjack
  • 1x HPC-FMC with 8 MGT ports
  • 4x PMOD compatible sockets
  • uSD card
2024-08-12T16:35:55+02:00
Top view of KRC-1711 evaluation carrier for the KRM-1Z7010 FPGA module

KRC-1711 KIT

Main Product Highlights:

  • 4x USB host (attach keyboard, mouse W-LAN modules)
  • Gigabit Ethernet Phy with Magjack
  • 1x HPC-FMC with 8 MGT ports
  • 4x PMOD compatible sockets
  • uSD card
