Main Product Highlights:
- Accepts all KRM-6ZUxxDR variants
- Modular set with separate PCBs
- RF Front End ADC & clocks
- RF Front End DAC
- Serial transceiver interface & power
- MIO Peripherals board
- NVMe adapter
- USB serial ports to BMC
- Single 12V supply
KRC-6000 Evaluation Carrier Kit
€3,760.00
Variants
| CARRIER | Q 1-10 | MOQ |
|---|---|---|
| KRC-6000 KIT | € 3’670.00 | 1 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description

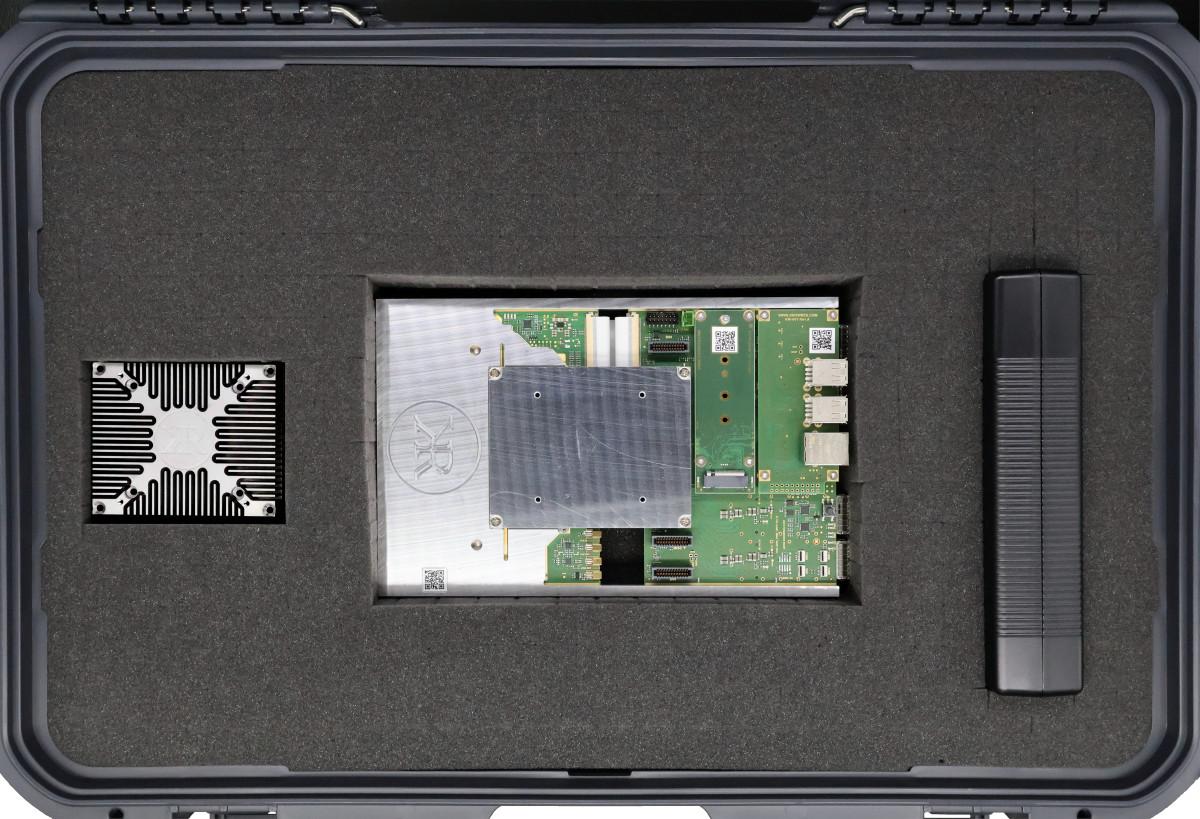

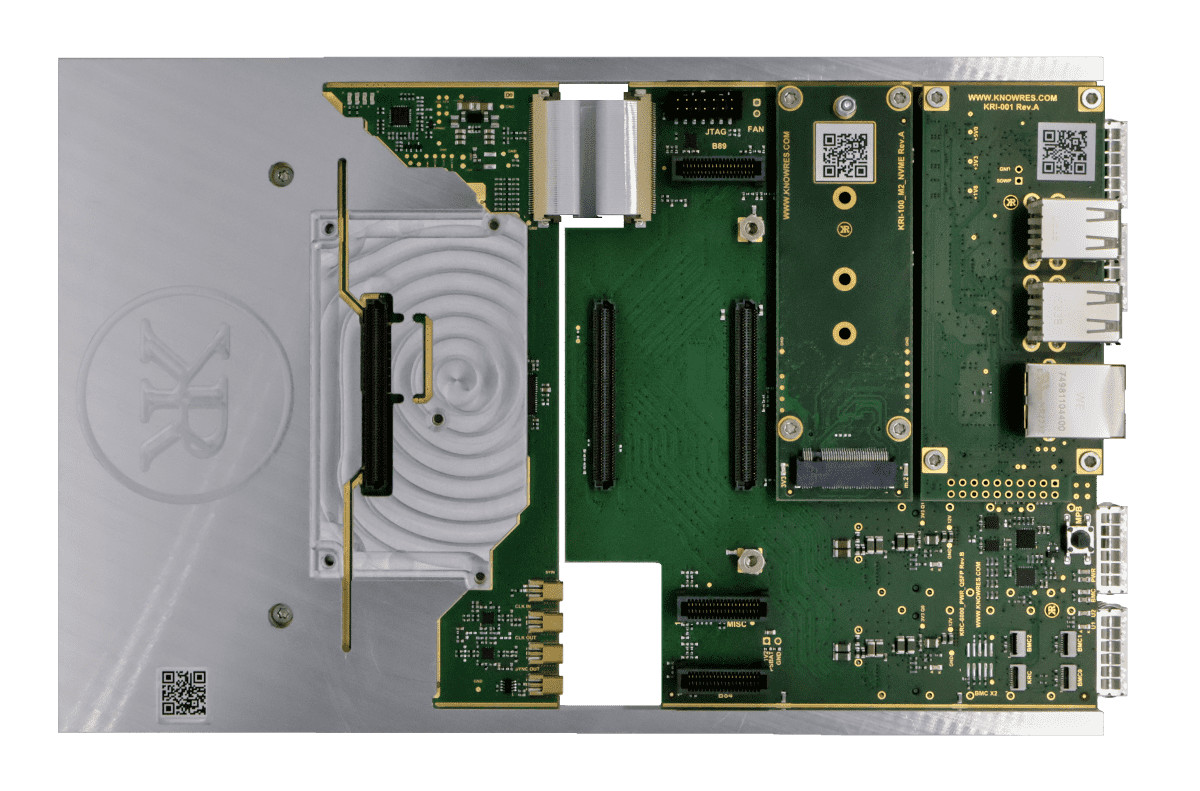

The KRC- 6000 KIT accepts all modules of the KRM-6ZUxxDR family and features the following:
- AFE with Baluns to MMCX connectors for all 16 ADC and 16 DAC channels
- MTS capable low jitter clock synthesizer with Clock & SysRef in /out
- QSFP and power input board
- PS peripheral bridge Board
- NVMe adapter Board
- Universal Power supply
- Heat sink and fan assembly
- RF cables, data cables including QSFP
- Ships in robust flight case
Matching Modules
Downloads
Inquire for access to the data sheet
