Main Product Highlights:
- Accepts all KRM-2ZUxxDR variants
- Modular set with separate PCBs
- RF Front End ADC & clocks
- RF Front End DAC
- Serial transceiver interface & power
- MIO Peripherals board
- NVMe adapter
- USB serial ports to BMC
- Single 12V supply
KRC-2000 KIT
€2,760.00
Variants
| CARRIER | Q 1-10 | MOQ |
|---|---|---|
| KRC-2000 KIT | € 2’670.00 | 1 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description

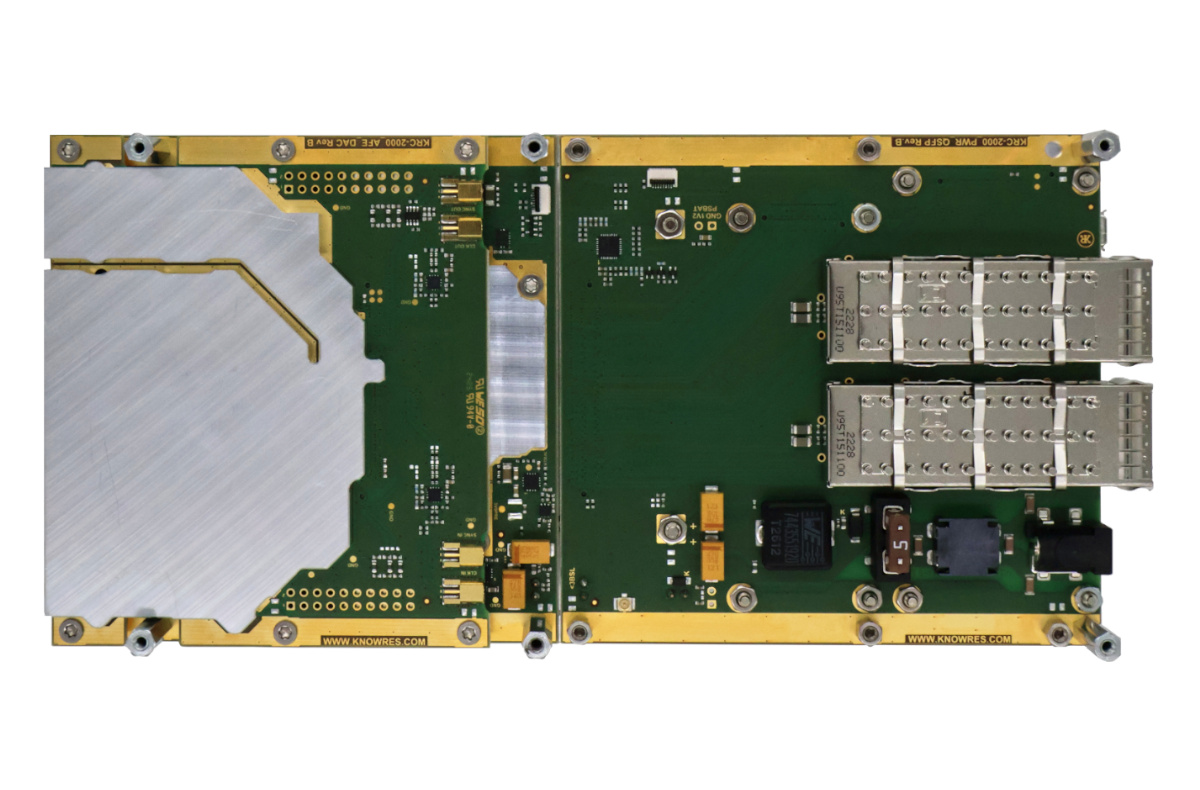

The KRC2000 KIT accepts all modules of the KRM-2ZUxxDR family and features the following:
- AFE with Baluns to MMCX connectors for all 8+2 ADC and 8 DAC channels
- MTS capable low jitter clock synthesizer with Clock & SysRef in /out
- QSFP and power input board
- PS peripheral bridge Board
- NVMe adapter Board
- Universal Power supply

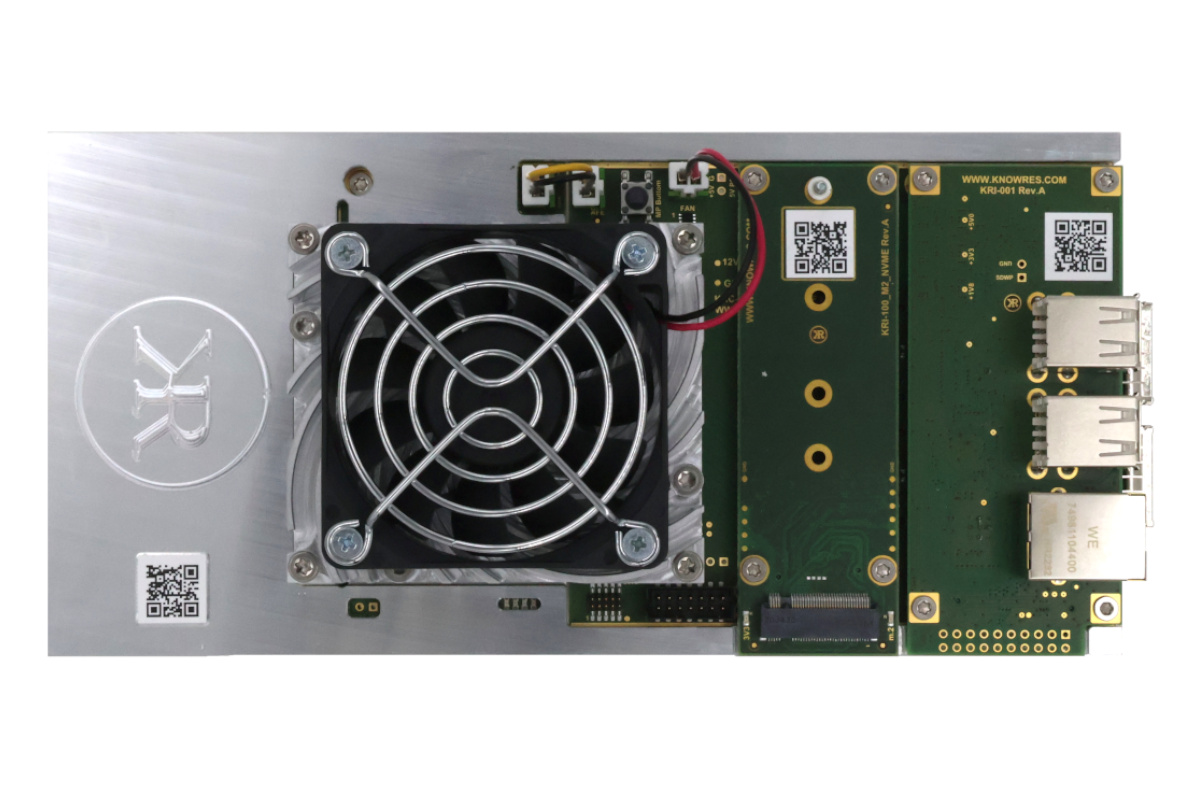

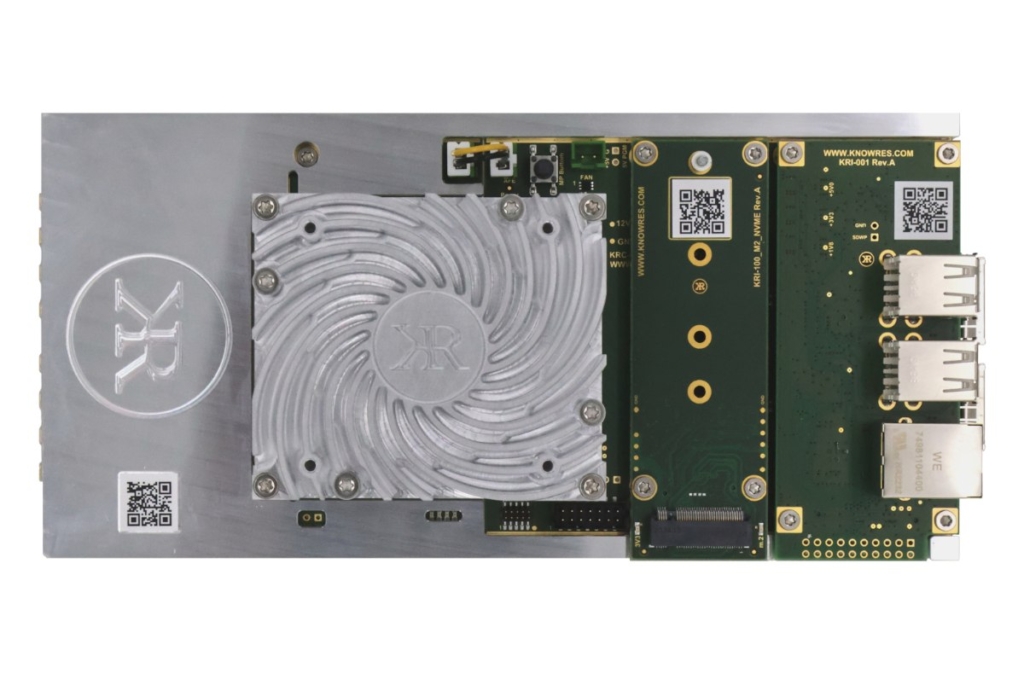

- Heat sink and fan assembly
- RF cables, data cables including QSFP

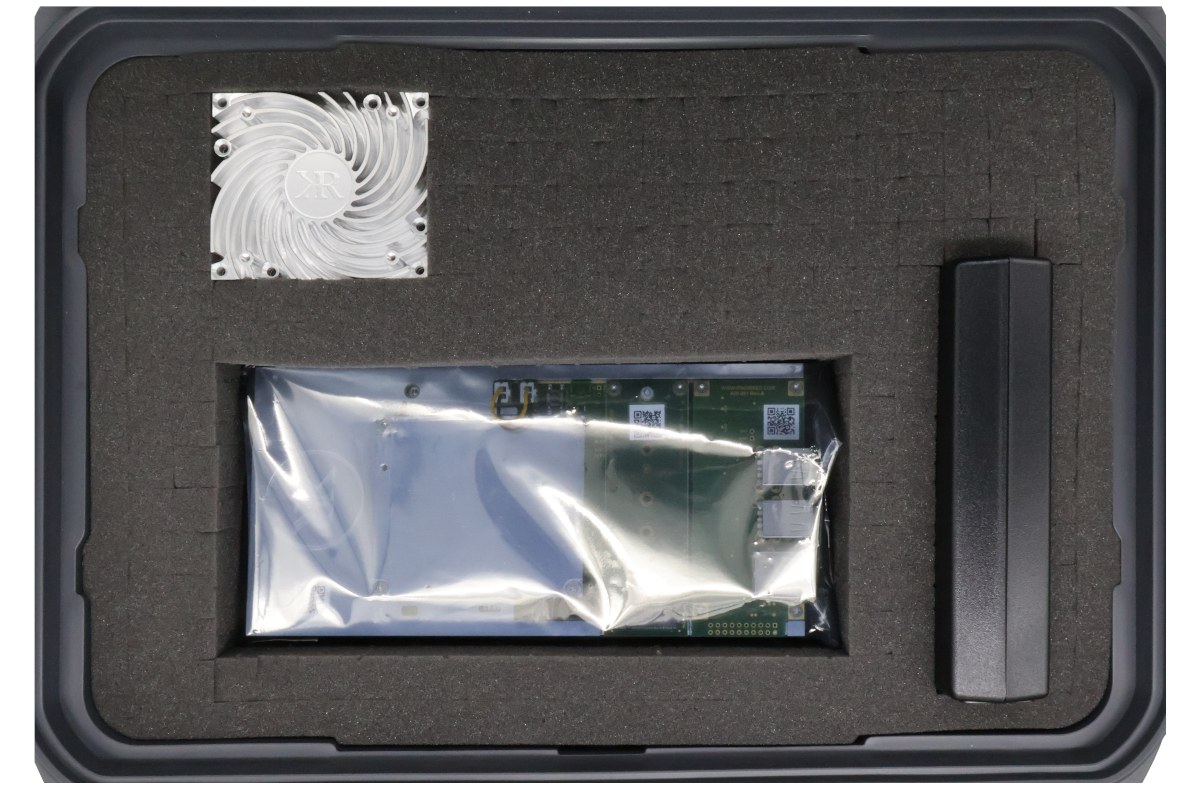

- Ships in robust flight case
Matching Modules
Downloads
Inquire for access to the data sheet
