Main Product Highlights:
– 4x USB host (attach keyboard, mouse W-LAN modules)
– Gigabit Ethernet Phy with Magjack
– 1x HPC-FMC with 8 MGT ports
– 4x PMOD compatible sockets
– uSD card

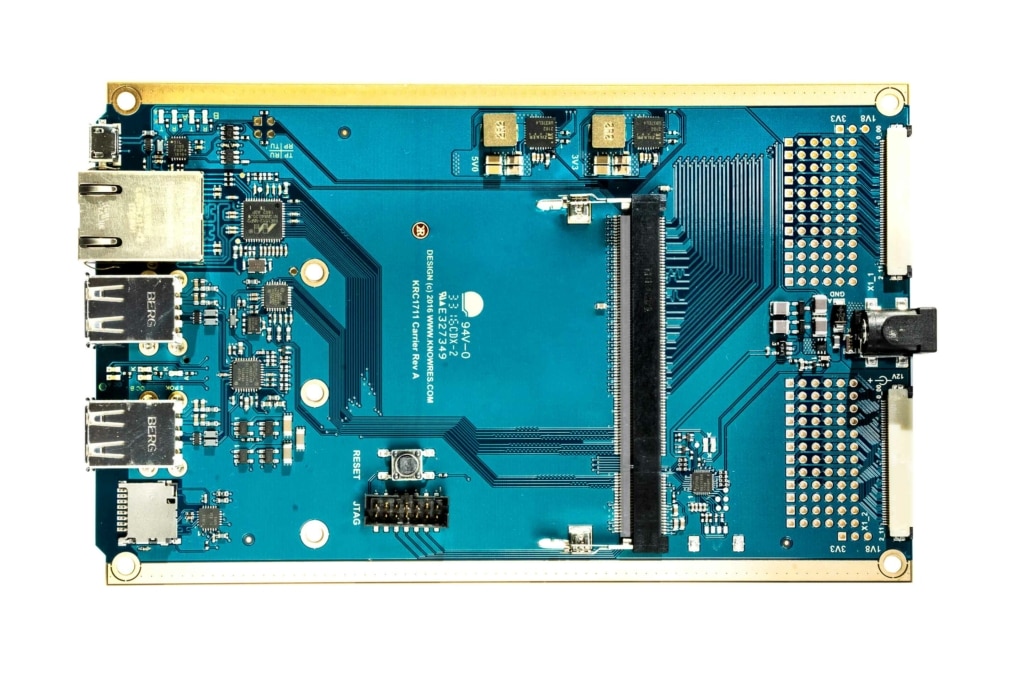

KRC-1711 KIT
€198.00
Variants
MODULE | Q 1-99 | MOQ |
---|---|---|
KRC1711_CK | € 198.00 | 1 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description
The KRC1711 accepts all modules of the KRM-1Z7xxx family and features the following:
- uSD card
- 4x USB host (attach keyboard, mouse W-LAN modules)
- Gigabit Ethernet Phy with Magjack
- 2x Uart to USB 1 PM, 1 MIO
- 2x 50-pin Ziff expansion ports for a wide range of expansion modules
- 24x PMOD compatible sockets
- 12V single supply
INCLUDES:
- Carrier PCB
- Universal AC to 12V DC Supply
- 8GB uSD card with pre-loaded boot.ini for all KRM-xZ7xx module types, u-boot and linux with pre-configured device tree and drivers
- Micro USB cable for serial console connectivity
Matching Modules
Accessories
All accessories are included in the kit
Downloads
Datasheet (PDF)
Quick Start Guide
Altium Library
