Main Product Highlights:
-AMD Zynq 7000 series
-Dual 32 bit ARM A9 cores
-PS RAM
-192 GPIO
KRM-1Z7010 Module
€126.00
Variants
MODULE | Q 1-99 | MOQ |
---|---|---|
KRM-Z7010C1XBAC-x | € 126.00 | 1 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description

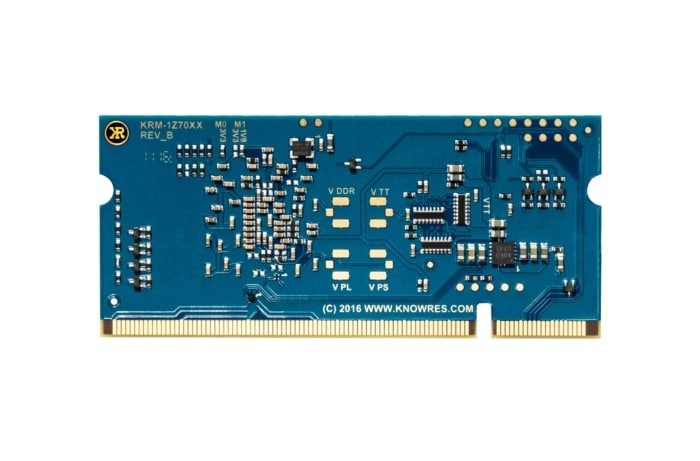

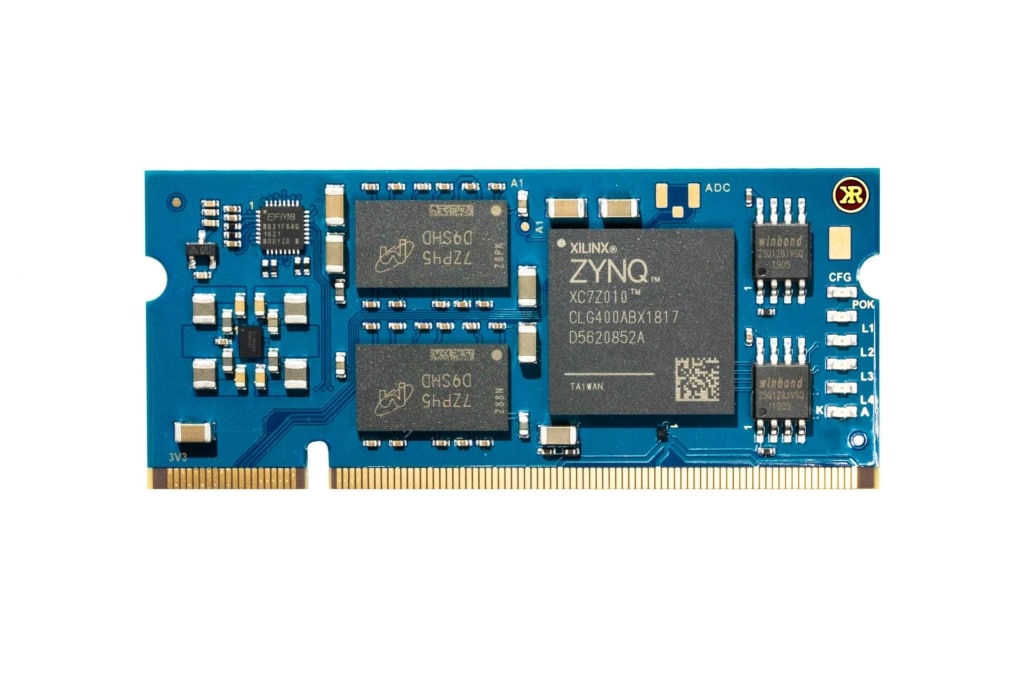

KRM-1Z7010 Module with AMD Zynq 7000 SoC
A compact, low power module that features the most commonly used features in an easy to integrate 30mm SO-DIMM form factor. Only a 3.3V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. The “Config done” pin indicates the ready state of the module
Key features:
- AMD Zynq XC7Z010-xCLG400x
- Dual core A9 Processors
- 2 Instances of 256Mb x16 LP DDRIII RAM PS @1066MHz (1GB total)
- 256Mb config memory, two times 4X SPI memory
- 4 application status LED
- On connectors:
- 2x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
- MIO 16 through 53 available on I/O connector
- Dedicated PS Reset In
- Dedicated CFG OK out
- JTAG
- 33.33MHz Clock
Matching Carriers
Accessories
There are no accessories for this product
Downloads
Datasheet (PDF)
Vivado Scripts
Altium Library
I/O Pinning.xls
Step File
