KRM-6ZU49DR RFSoC Module

Product Description

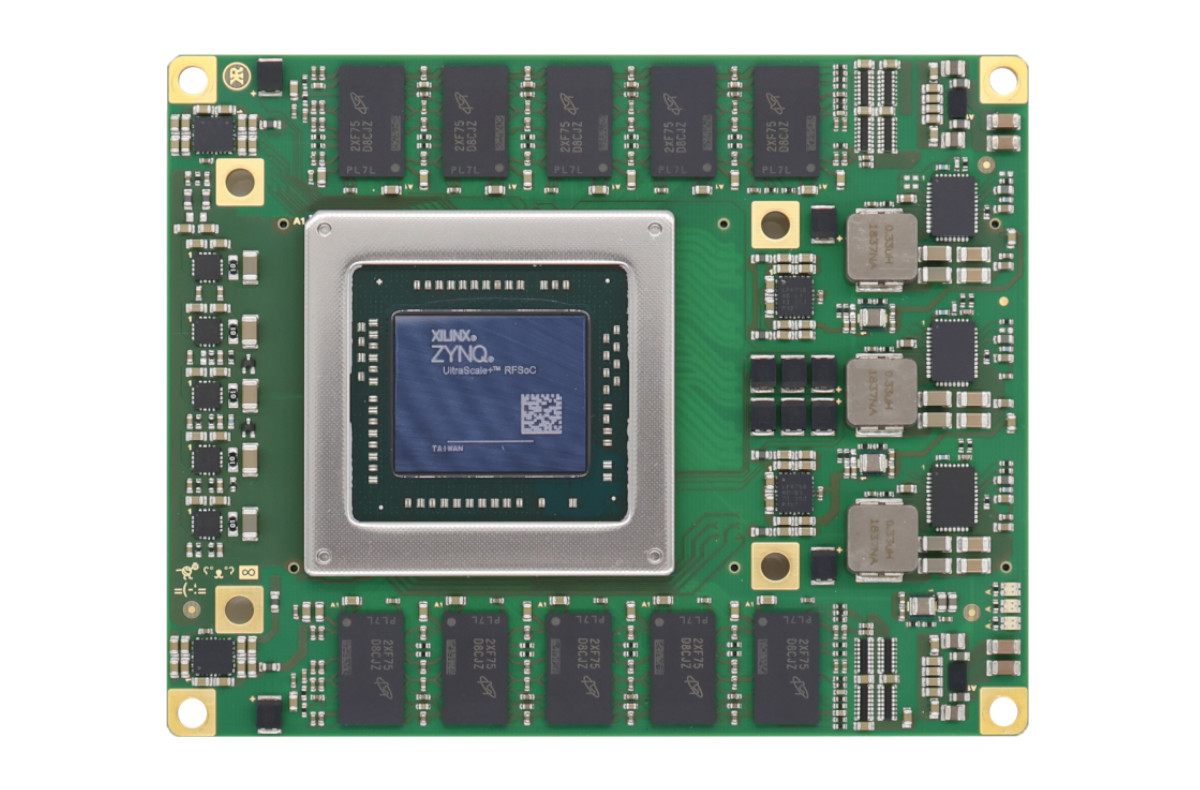

KRM-6ZU49DR RFSoC Module with AMD RFSoC GEN3

The KRM-6 RFSoC FPGA Module is based in the AMD/Xilinx XCZU49DR and offers 16CH ADC and 16DAC channels. Driven by the higher pin-count FPGA package, the module is slightly larger than our original KRM-4 SoM family. The extra space allowed us to incorporate ECC on both PL RAM interfaces, and the optimization of the connector pinning provides additional PL I/O. High speed data access is provided by 16 lanes of GTY transceivers at up to 28Gbs.

The module operates from a single 12V supply, and features the same housekeeping bus as all of KR’s recent FPGA SoMs, easing their integration into complex systems.

Key features:

SoC FPGA
AMD Zynq XCZU49DR

Processing System
Quad core A53 64 bit processors

Memory Options
8 GB of PS RAM @ 2400 MHz
2x 8GB of PL RAM @ 2400 MHz
1Gb QSPI configuration flash
8GB eMMC

Module I/O
16x High-speed RF ADCs @ 2.5 Gs
16x High-speed RF DACs @ up to 10.0 Gs
16x 32-Gbit PL transceivers
4x 6-Gbit PS transceivers

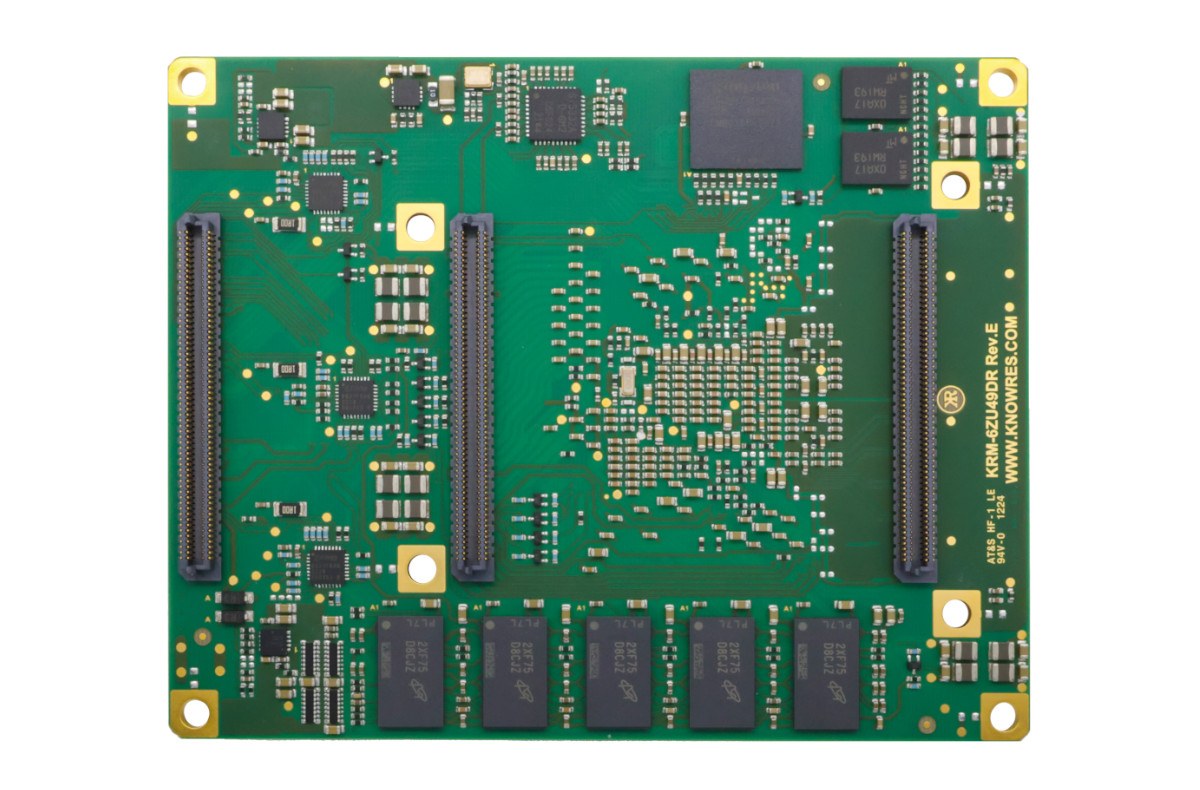

On connectors:

• 3 x HD banks
• 2x MIO Bank
• BMC console

Clock Synthesizer
On module low jitter Clock synthesizer for Transceivers
