Main Product Highlights:
-Intel 10 AX-Series
-8x 10 bit ADC up to 64 GS/s
-8x 10 bit DAC up to 64 GS/s
-24 H & 24 E-tile transceivers
-2x 8 GB 72 bit DDR4 ECC RAM

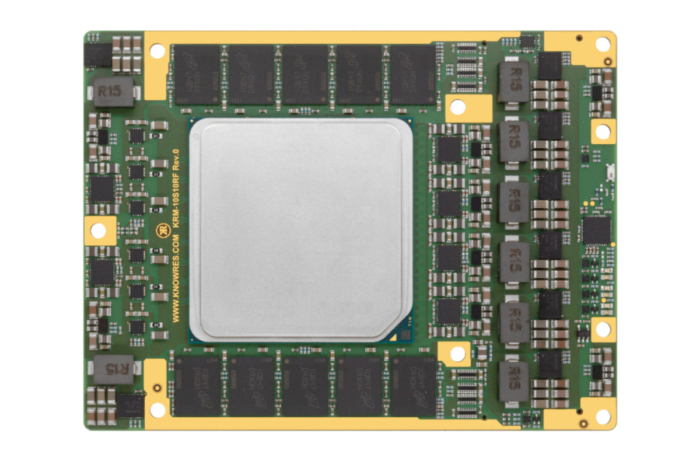

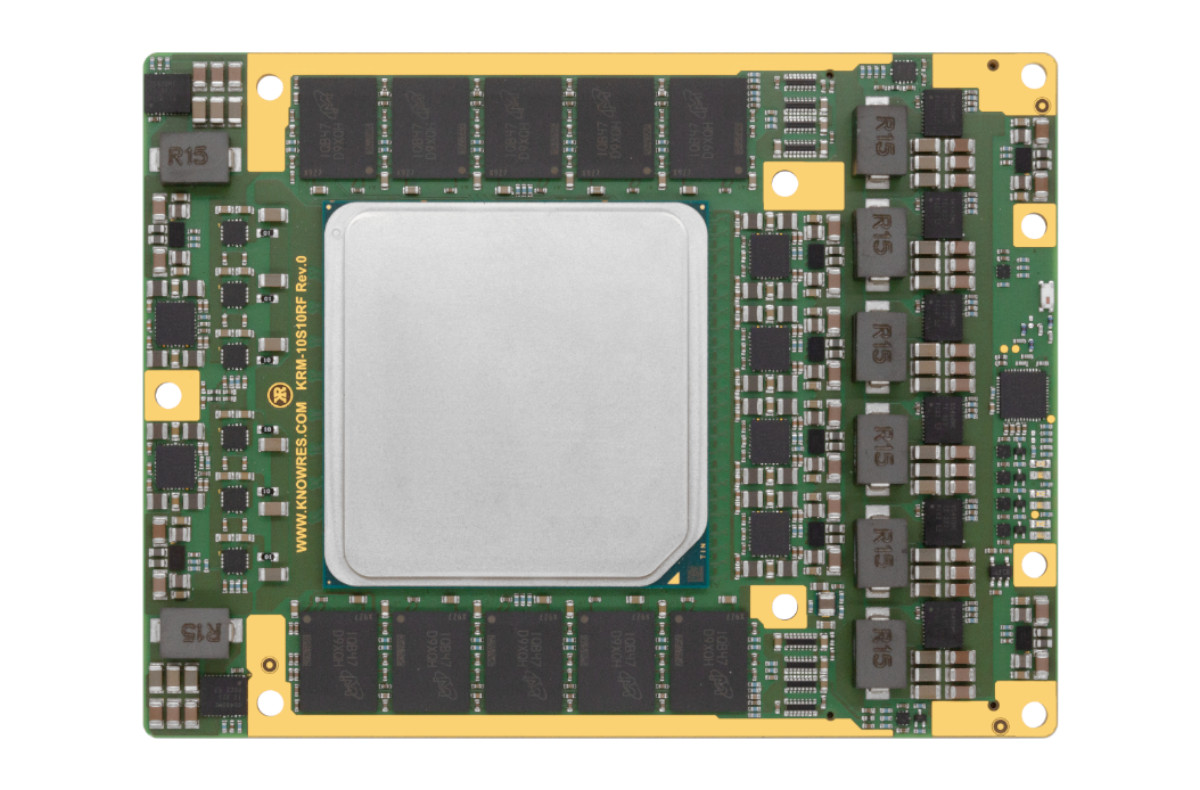

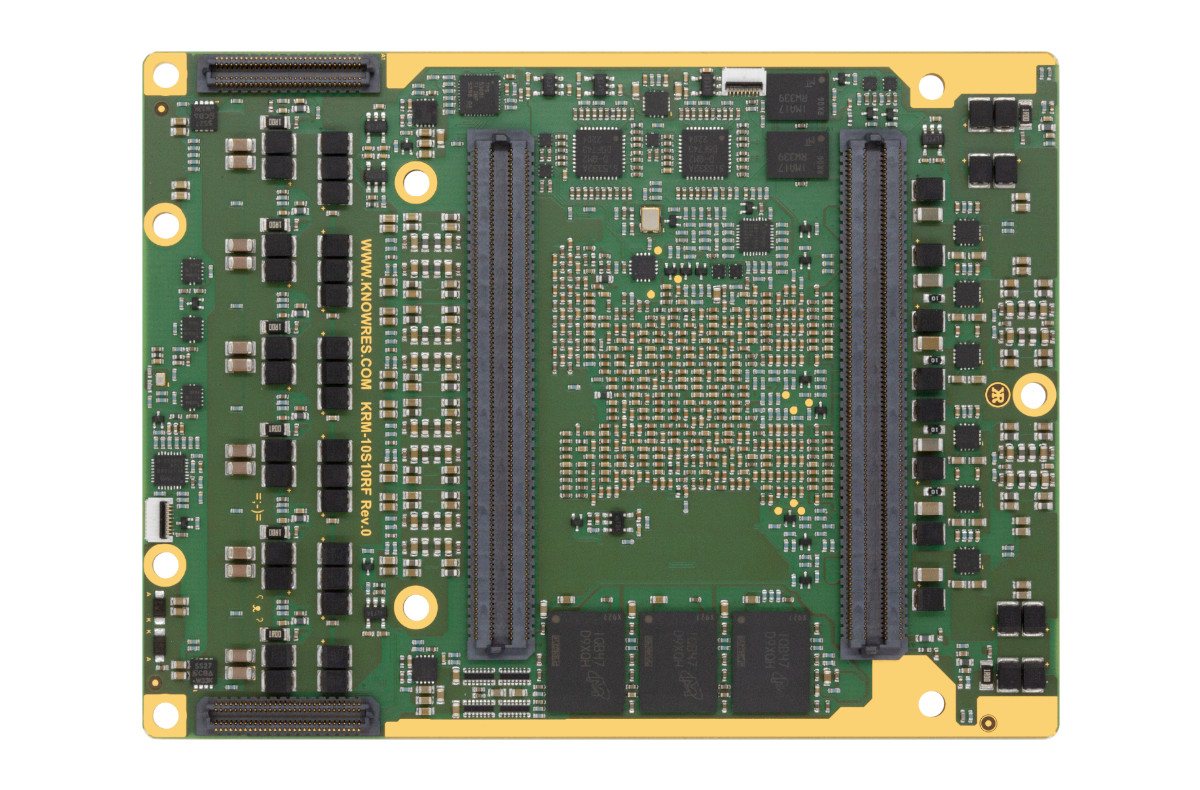

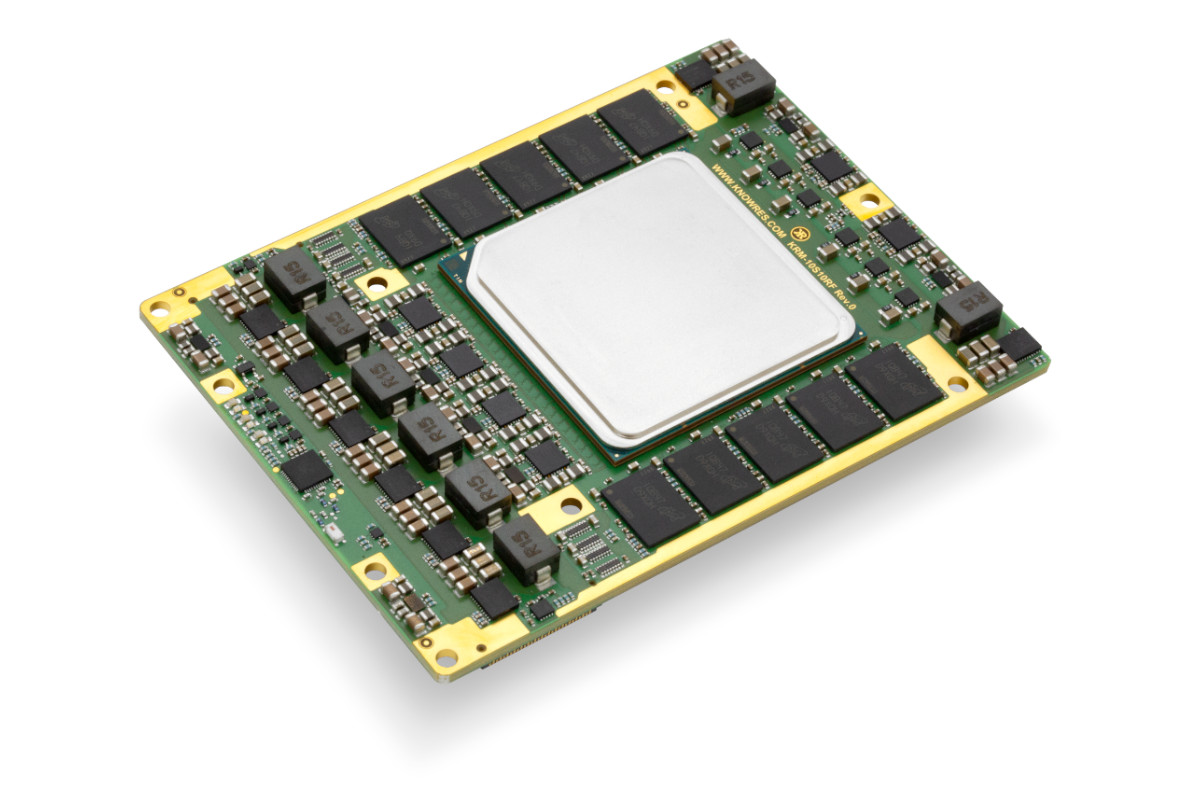

KRM-10S10RF RFSoC Module
Description
KRM-10S10RF Module with Intel Stratix 10 Direct RFSoC
Key features
SoC FPGA
Intel Stratix 10 direct RF
Direct RF-Subsystem
8x RF ADC and DAC @ 64GS
Digital I/O
24 H & 24 E-tile transceivers
56 LOGIC I/O
44 HPS I/O
Memory Configuration
4GB 40 bit DDR4 HPS RAM
2 x 8GB 72 bit DDR4 ECC RAM
Power
Single 12V supply
Dimensions
120 x 90 mm
Additional information
| Core SoC FPGA | Intel® Stratix® 10 AX-Series (Direct RF) |
|---|---|
| RF-ADC Performance | 8x 10-bit up to 64 GS/s |
| RF-DAC Performance | 8x 10-bit up to 64 GS/s |
| Transceiver Density | 48 Total (24 H-tile & 24 E-tile) |
| PL Memory | 16 GB (2x 8GB 72-bit DDR4 ECC RAM) |
| HPS Memory | 4 GB 40-bit DDR4 RAM |
| Logic I/O | 56 Logic I/O |
| Processor I/O | 44 HPS I/O |
| Power Input | Single 12V Supply |
| Dimensions | 120 x 90 mm |
Variants
| MODULE | Q 1-10 | MOQ |
|---|---|---|
| KRM-10S10RF | € price upon request | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
MOQ1 also indicates that sample stock is usually available with no lead time.
Matching Carriers
Coming soon
Downloads
Alternative Modules
No compatible modules at this point in time
