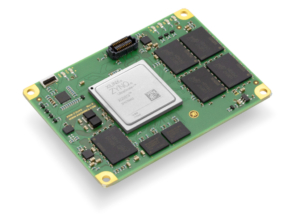

Overview of 3ZU series

Equipped with a AMD Zynq XC7ZU2/3/4/5CG component with Dual Arm® Cortex®-A53,  Dual Arm® Cortex®-R5F and Programmable Logic based on 16nm FinFET+ architecture.

A compact, upper mid-range low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all  FPGA and RAM voltages are generated on board. Everything from power sequencing,  configuration and clock generation is implemented on board. 3ZZUxxx Series are fully plug’n’play compatible to 3Z7xxx Series modules.

Overview of 3ZU series

Equipped with a AMD Zynq XC7ZU2/3/4/5CG component with Dual Arm® Cortex®-A53,  Dual Arm® Cortex®-R5F and Programmable Logic based on 16nm FinFET+ architecture.

A compact, upper mid-range low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all  FPGA and RAM voltages are generated on board. Everything from power sequencing,  configuration and clock generation is implemented on board. 3ZZUxxx Series are fully plug’n’play compatible to 3Z7xxx Series modules.

2023-08-02T12:16:01+02:00

KRM-3ZU5CG

Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 2GB PS RAM
– 512MB PL RAM
– 192 GPIO
– 4 PS GTP transceivers
– 4 PL GTY transceivers

2023-08-02T12:16:01+02:00

KRM-3ZU4CG

Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 2GB PS RAM
– 512MB PL RAM
– 192 GPIO
– 4 PS GTP transceivers
– 4 PL GTY transceivers

2023-08-02T12:16:01+02:00

KRM-3ZU3CG

Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 2GB PS RAM
– 512MB PL RAM
– 192 GPIO
– 4 PS GTP transceivers

2023-08-02T12:16:02+02:00

KRM-3ZU2CG

Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 2GB PS RAM
– 512MB PL RAM
– 192 GPIO
– 4 PS GTP transceivers
