Overview of 4ZU series
Equipped with a AMD Zynq XCZUxxDR component with Quad Arm® Cortex®-A53, Dual Arm® Cortex®-R5F and Programmable Logic based on 16nm FinFET+ architecture. Module offers access to 8x High-speed RF ADCs @ up to 5.000 Gs and 8x High-speed RD DACs @ up to 10.000 Gs.
A compact, high end module that features the AMD RFSoC embedded in a most versatile design so that it can be optimally utilized in a multitude of applications. Only a 12V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. The Dual 64Bit PL DDR4 RAM, operating at 2.4GT/s, provides the highest PL memory bandwidth of any currently available RFSoC module. Sixteen 28Gbit transceivers provide ample connectivity, on board dual QSPI and eMMC memories allow for a multitude of boot options and storage.
Overview of 4ZU series
Equipped with a AMD Zynq XCZUxxDR component with Quad Arm® Cortex®-A53, Dual Arm® Cortex®-R5F and Programmable Logic based on 16nm FinFET+ architecture. Module offers access to 8x High-speed RF ADCs @ up to 5.000 Gs and 8x High-speed RD DACs @ up to 10.000 Gs.
A compact, high end module that features the AMD RFSoC embedded in a most versatile design so that it can be optimally utilized in a multitude of applications. Only a 12V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. The Dual 64Bit PL DDR4 RAM, operating at 2.4GT/s, provides the highest PL memory bandwidth of any currently available RFSoC module. Sixteen 28Gbit transceivers provide ample connectivity, on board dual QSPI and eMMC memories allow for a multitude of boot options and storage.
KRM-4ZU48DR
Main Product Highlights:
-AMD RFSoC GEN3 Ultrascale+ series
-8x 5.000 GSample ADC’s
-8x up to 10.00 GSample DAC’s
-SD FEC
-16 x 32 GT Transceivers
-2x 64 bit PL DDR4 8 GB @ 2.4 GT/s
-8 GB of PS RAM @ 2400 MHz
KRM-4ZU47DR
Main Product Highlights:
-AMD RFSoC GEN3 Ultrascale+ series
-8x 5.000 GSample ADC’s
-8x up to 10.00 GSample DAC’s
-16 x 32 GT Transceivers
-2x 64 bit PL DDR4 4-8 GB @ 2.4 GT/s

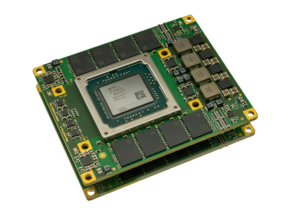

KRM-4ZU27DR
Main Product Highlights:
-AMD RFSoC Ultrascale+ series
-8x 4.096 GSample ADCs
-8x 6.554 GSample DACs
-16 x 32 GT transceivers
-2x 64 bit PL DDR4 4-8 GB @ 2.4 GT/s
KRM-4ZU25DR
Main Product Highlights:
-AMD RFSoC Ultrascale+ series
-8x 4.096 GSample ADC’s
-8x 6.554 GSample DAC’s
-8 x 32 GT Transceivers
-2x 64 bit PL DDR4 4-8 GB @ 2.4 GT/s
