Main Product Highlights:
-AMD Zynq 7000 series
-Dual 32 bit ARM A9 cores
-PS & PL RAM
-192 GPIO
-8x 12Gbit transceivers
KRM-3Z7045 FFG SoC Module
€1,155.00
Description

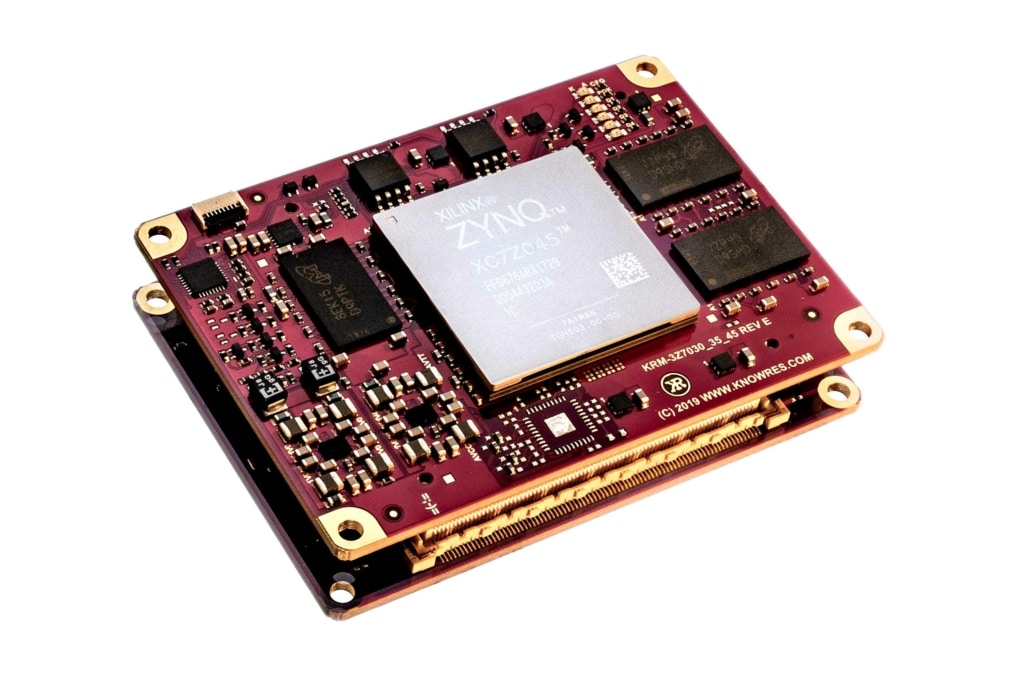

KRM-3Z7045 Module with AMD Zynq 7000 SoC
A compact, low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. The “Config done” pin indicates the ready state of the module. Key Features:
- AMD Zynq XC7Z045-1FFG676C
- Dual core A9 Processors
- 2 Instances of 256Mb x16 LP DDRIII RAM PS @1066MHz (1GB total)
- 1 Instance of 128Mb x16 LP DDRIII RAM PL @1333MHz (256MB total)
- 256Mb config memory, two times 4X SPI memory
- 4 application status LED
- On connectors:
-
- 4x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
- MIO 16 through 53 available on I/O connector
- 8x MGT at 8Gbit
- 2x MGT refclock input
- Dedicated PS Reset In
- Dedicated CFG OK out
- JTAG
-
- 33.33MHz Clock
Additional information
| Core SoC | AMD Zynq™ 7000 (XC7Z045-1FFG676C) |
|---|---|
| Processor | Dual-core ARM® Cortex™-A9 (32-bit) |
| Transceivers | 8x MGT @ up to 12 Gbit/s |
| PS Memory | 1 GB LP DDR3 @ 1066 MHz |
| PL Memory | 256 MB LP DDR3 @ 1333 MHz |
| User I/O | 192 GPIOs (4x 48-pin banks, user-selectable voltage) |
| Configuration | 256Mb Dual 4X SPI Flash |
| Power Input | Single 3.3V Supply (all internal voltages generated on-board) |
| Status Monitoring | Dedicated "CFG OK" out & "PS Reset" In |
| Dimensions | 50 x 70 mm |
Variants
| MODULE | Q 1-99 | MOQ |
|---|---|---|
| KRM-3Z7045C1XDAB-F | € 1155.00 | 1 |
| KRM-3Z7045C2XDAB-F | € 1380.00 | 20 |
| KRM-3Z7045I1XDAB-F | € 1380.00 | 20 |
| KRM-3Z7045I2XDAB-F | € 1485.00 | 1 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
