Deprecated – Please refer to KRM-3eZU4CG MPSoC Module
Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 2GB PS RAM
– 512MB PL RAM
– 192 GPIO
– 4 PS GTP transceivers
KRM-3ZU2CG MPSoC Module
€340.00
Description

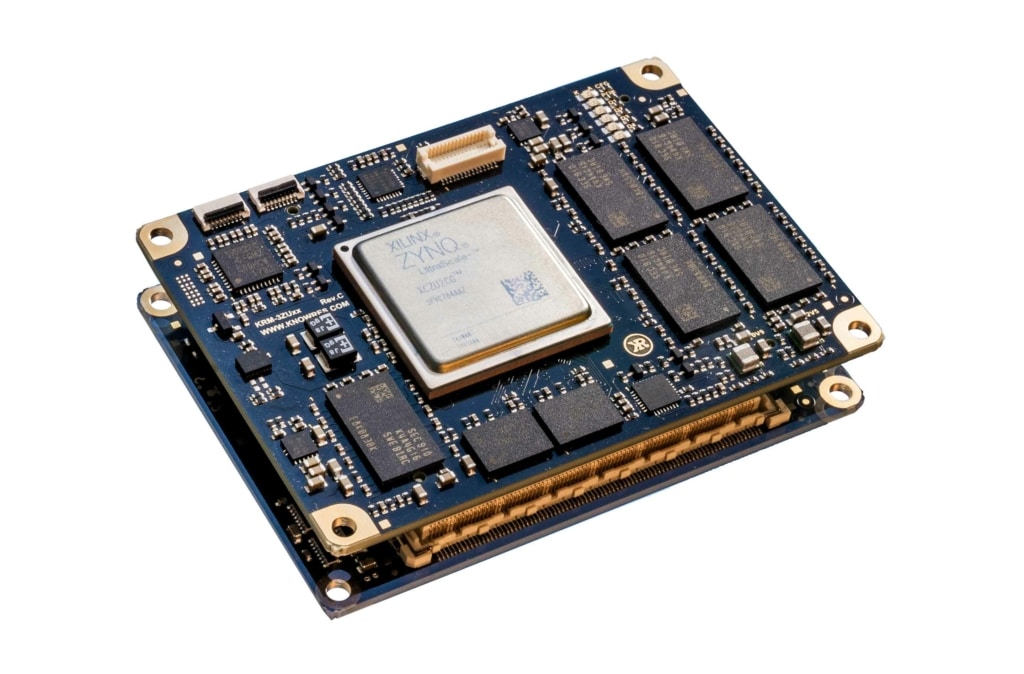

KRM-3ZU2CG Module with AMD Zynq MPSoC
A compact, mid-range low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board.
Key features:
- AMD Zynq XCZU2CG-xSFVC784x
- Dual core A53 64 bit processors
- 4 Instances of 256Mb x16 DDR4 RAM PS @2400MHz (2GB total)
- 1 Instances of 256Mb x16 DDR4 RAM PL @2400MHz (512MB)
- 512Mb config memory, two times 4X SPI memory
- 4 application status LED
- On connectors:
- 4x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
- MIO BANK 501 available on I/O connector
- Dedicated PS Reset In
- Dedicated CFG OK out
- JTAG
- Clock Synthesizer
Additional information
| Core SoC | AMD Zynq™ UltraScale+™ XCZU2CG-xSFVC784x |
|---|---|
| Processor | Dual-core ARM® Cortex™-A53 (64-bit) |
| PS Memory | 2 GB DDR4 @ 2400 MHz (4 instances) |
| PL Memory | 512 MB DDR4 @ 2400 MHz (1 instance) |
| PS Transceivers | 4x PS GTP Transceivers (System-side) |
| User I/O | 192 GPIOs (4x 48-pin banks, user-selectable voltage) |
| Configuration | 512Mb Dual 4X SPI Flash |
| Clocking | Integrated low-jitter Clock Synthesizer |
| Power Input | Single 3.3V Supply (on-board voltage generation) |
| Dimensions | 50 x 70 mm |
| Status Signals | Dedicated PS Reset In, JTAG, and CFG OK Out |
Variants
| MODULE | Q 1-99 | MOQ |
|---|---|---|
| KRM-3ZU2CGE1XECB-x | € 340.00 | 1 |
| KRM-3ZU2CGE2XECB-x | € 404.00 | 20 |
| KRM-3ZU2CGI1XECB-x | € 408.00 | 20 |
| KRM-3ZU2CGI2XECB-x | € 442.00 | 20 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
