Main Product Highlights:
– AMD Zynq MPSoC Ultrascale+ series
– Dual 64 bit ARM A53 cores
– 8GB PS RAM
– 2GB PL RAM
– 192 GPIO
– 4 PS GTR on SoM
– 4 PL GTH transceivers
– supersedes KRM-3ZU2/3/4CG (form, fit, function compatible)
KRM-3eZU4CG MPSOC Module
€472.00
Variants
| MODULE | Q 1-99 | MOQ |
|---|---|---|
| KRM-3eZU4CGE1XECB-x | € 472.00 | 1 |
| KRM-3eZU4CGE2XECB-x | € 583.00 | 20 |
| KRM-3eZU4CGI1XECB-x | € 570.00 | 20 |
| KRM-3eZU4CGI2XECB-x | € 657.00 | 20 |
Inquire for prices of large quantities
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description

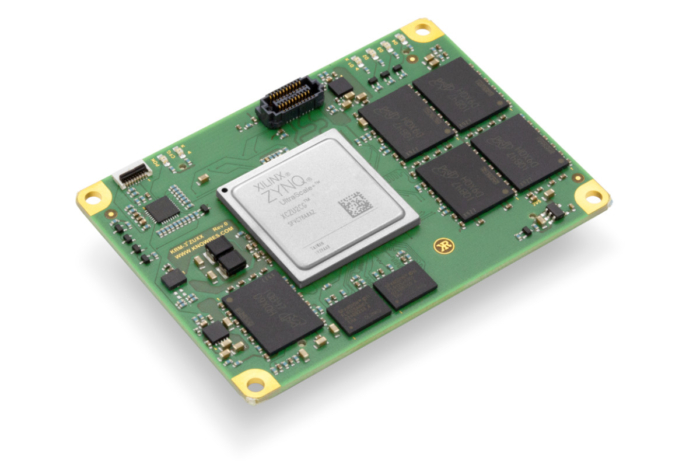

KRM-3eZU4CG Module with AMD Zynq MPSoC
The updated e-Volution version of the popular KRM-3 series. This new version features the same housekeeping signals as our larger KRM-2/4/ and 6 modules and a piggyback option for small NVMe drives. It is a compact, upper mid-range low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board.
Key features:
- AMD Zynq XCZU4CG-xSFVC784x
- Dual core A53 64 bit processors
- 4 Instances of 1Gb x16 DDR4 RAM PS @2400MHz (8GB total)
- 1 Instances of 1Gb x16 DDR4 RAM PL @2400MHz (2GB)
- 512Mb config memory, two times 4X SPI memory
- 4 application status LED
- On connectors:
- 4x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
- MIO BANK 501 available on I/O connector
- 4x GTH at 12.5 Gbit
- 2x MGT refclock input
- On SoM PS GTR for M.2 PCIe modules
- Dedicated PS Reset In
- Dedicated CFG OK out
- JTAG
- Clock Synthesizer
