Main Product Highlights:
-Xilinx Versal HBM
-XCVH1782-2MSELSVA4737
-13 GTY Quads on connectors
-13 GTM Quads on connectors
-On board low jitter clock sources
-8x 32 bit 16Gb LPDDR4
-Dual QSPI
-eMMC
-1x XPIO Bank on connector
-2x MIO Bank on connector
KRM-9VH1X82 Versal HBM
Description

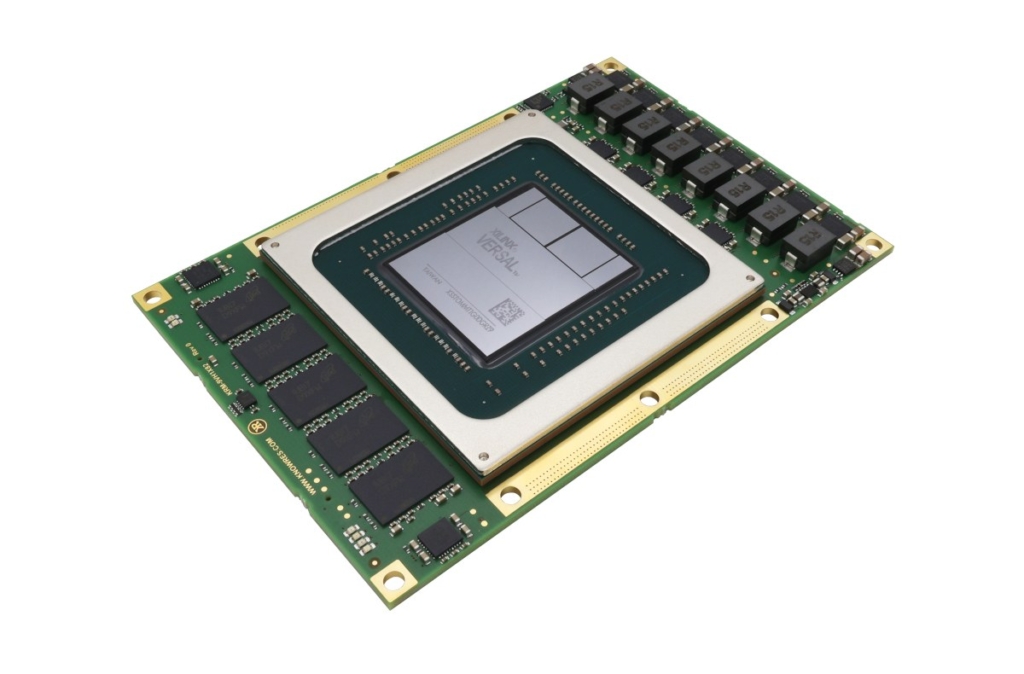

KRM-9VH1784 Module with AMD Versal Premium HBM
A compact, high-end module that features a Xilinx Versal Premium HBM part embedded in a most versatile design so that it can be optimally utilized in a multitude of applications. Only a 12V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. On-board dual QSPI and eMMC memories allow for a multitude of boot options and storage. Our proven housekeeping bus ensure that this SoM can be integrated in a robust multi FPGA/SoM design with deterministic, system-wide power up behavior.
Key features:
-
- XCVH1782-2MSELSVA4737
- Dimensions: 125 x 85 mm, total height with heat spreader 16mm
- Interconnect:
- 2x Samtec APM6 (GTM/GTY+ Power)
- X1 4 GTY quads, 9 GTM quads
- X2 9 GTY quads, 4 GTM quads
- 1x Samtec ADP6 (MIO/Housekeeping/GPIO/GTx clock input and debug)
- 12V Single supply (300W P-max)
- 8 x LPDDR4 x32 Memory on board
- eMMC & QSPI
- Clock Synthesizer
- On module very low jitter Clock synthesizers for Transceivers
Additional information
| Core Adaptive SoC | AMD Versal™ Premium HBM (XCVH1782-2MSELSVA4737) |
|---|---|
| HBM Subsystem | Integrated HBM2e (up to 819 GB/s throughput) |
| Transceiver Density | 13 GTM Quads (112G PAM-4) + 13 GTY Quads (32G NRZ) |
| On-Board RAM | 8x 32-bit (16Gb) LPDDR4 |
| Storage | Dual QSPI Flash + eMMC |
| I/O Expansion | 1x XPIO Bank + 2x MIO Banks on connector |
| Clocking | On-module low-jitter synthesizers for Transceivers |
| Power Management | Single 12V Supply (300W P-max) |
| Interconnect | 2x Samtec APM6 + 1x Samtec ADP6 |
| Dimensions | 125 x 85 mm (16mm height with heat spreader) |
Variants
| MODULE | Q 1-25 | MOQ |
|---|---|---|
| KRM-9VH1782-2MSEL-32G | € price upon request | 10 |
| KRM-9VH1582-2MSEL-32G | € price upon request | 10 |
Inquire for prices of larger quantities or other memory configurations and lead times
Matching Carriers
KRC-9 KIT available Q4 2025
Downloads
Datasheet access under NDA
For more information, please use the INQUIRE button above.
