Main Product Highlights:
-Intel AgileX 5 Series
–24 28.1 Gbps transceivers
-80 HVIO
-40 HSIO
-44 HPSIO
-4 x 8GB 32 bit LPDDR4 RAM
-QSPI and eMMC
-Single 3V7 to 5V supply
-60 x 50mm

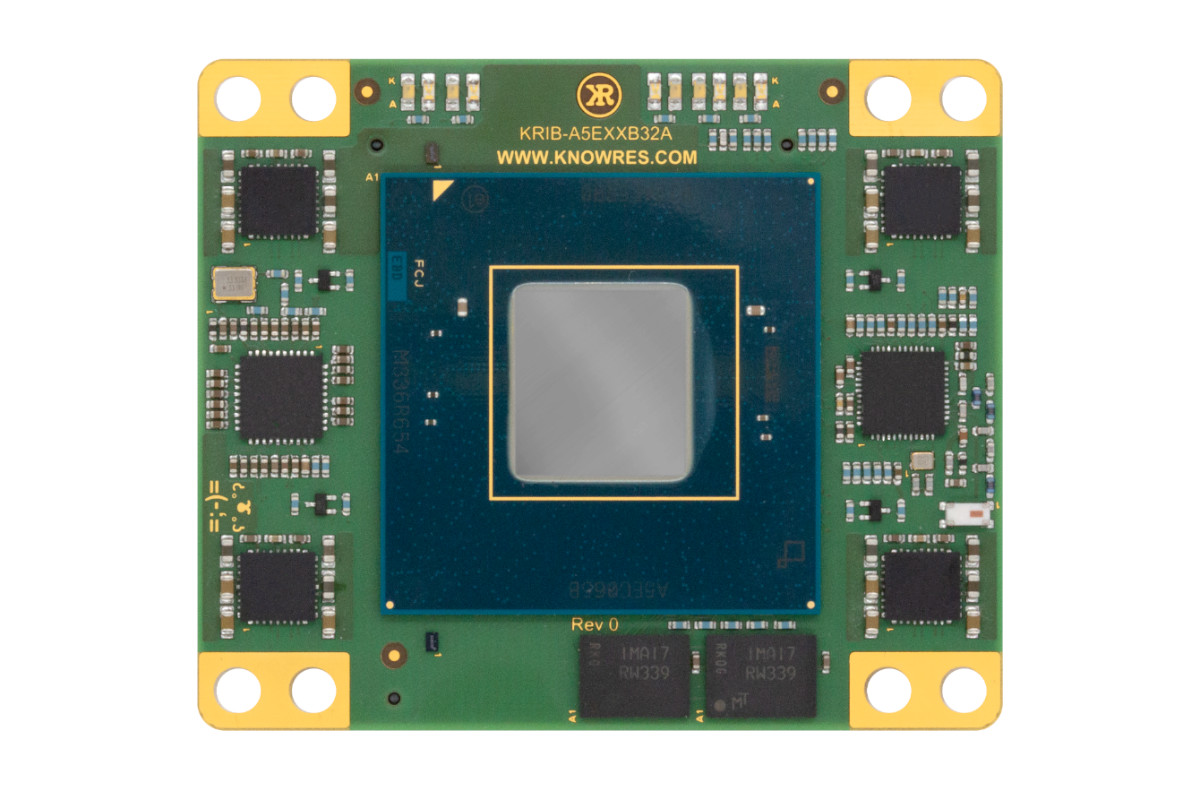

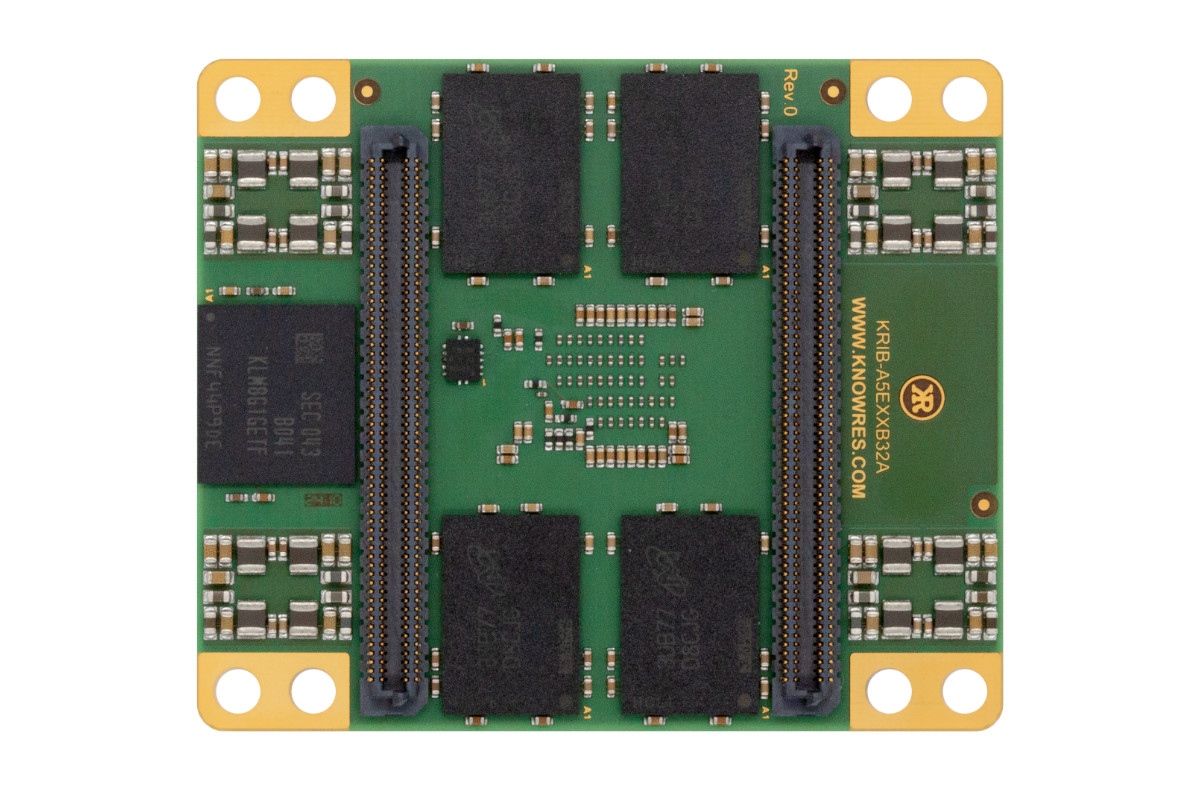

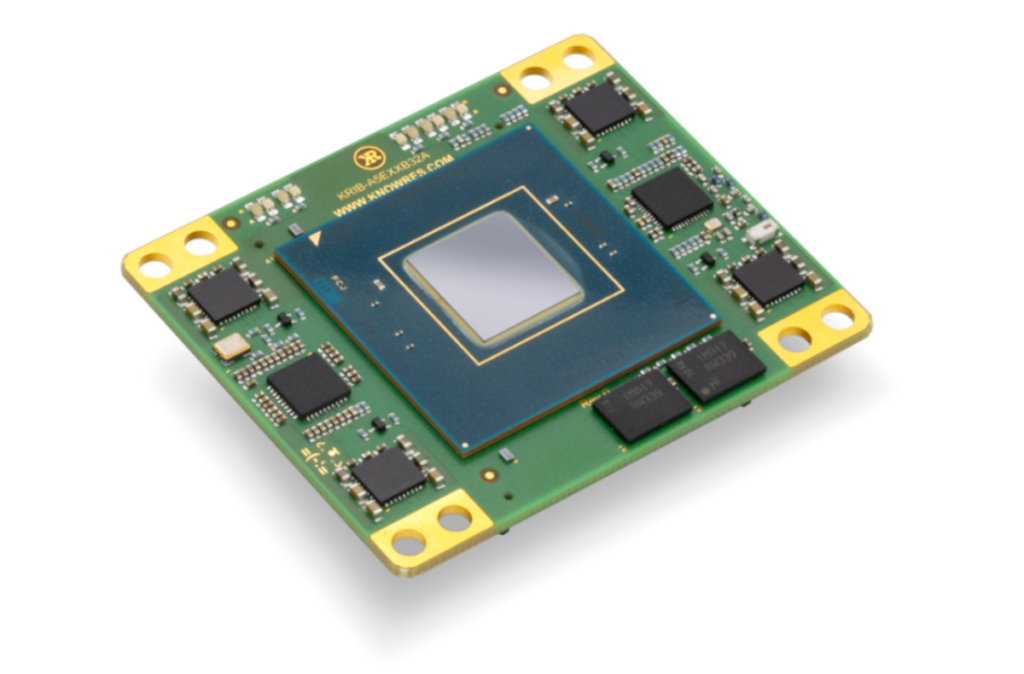

KRIB-A5ExxB32A
Additional information
| Core SoC FPGA | Intel® Agilex® 5 (A5E043A/B or A5E065A/B) |
|---|---|
| High-Speed Serial | 24x 28.1 Gbps Transceivers |
| Total Memory | 32 GB (4x 8GB 32-bit LPDDR4 RAM) |
| High-Voltage I/O | 80 HVIO |
| High-Speed I/O | 40 HSIO |
| HPS I/O | 44 HPSIO |
| Configuration Flash | Dual QSPI (up to 512 MB) |
| On-Board Storage | 16 GB to 64 GB eMMC |
| Power Input | Single 3.7V to 5V Supply |
| Dimensions | 60 x 50 mm |
Variants
| MODULE | Q 1-10 | MOQ |
|---|---|---|
| KRIB-A5ExxB32A | € price upon request | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description
Key features:
SoC FPGA
Intel Agilex 5 A5E043A/B or 065A/B
Digital I/O
24 28.1 Gbps transceivers
80 HVIO
40 HSIO
44 HPSIO
Memory Configuration
4 x 8GB 32 bit LPDDR4 RAM
Dual QSPI up to 512 MB
eMMC 16 to 64 GB
Power Supply
Single 3V7 to 5V supply
Dimensions
60x50mm
Matching Carriers
Coming soon
Downloads
Alternative Modules
This is the first and currently only module in this family. More members to be announced soon.
