Main Product Highlights:
-AMD RFSoC DFE Ultrascale+ series
-8x 2.95 GSample ADCs
-2x 5.9 GSample ADCs
-8x up to 10.00 GSample DACs
-8 x 32 GT Transceivers
-1x 48 bit PL DDR4 6 GB @ 2.4 GT/s
-1x 72 bit PS DDR4 @ 2.4GT/s
KRM-2ZU67DR RFSoC Module
Variants
| MODULE | Q 1-10 | MOQ |
|---|---|---|
| KRM-2ZU67DR 2E | € price upon request | 1 |
| KRM-2ZU67DR 2i | € price upon request | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
MOQ1 also indicates that sample stock is usually available with no lead time.
Product Description

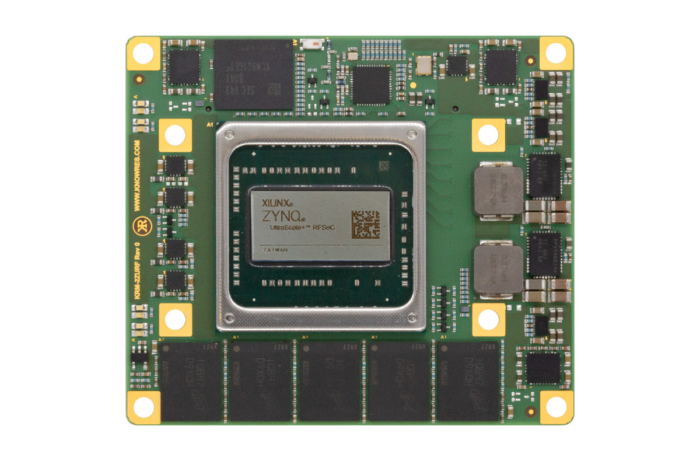

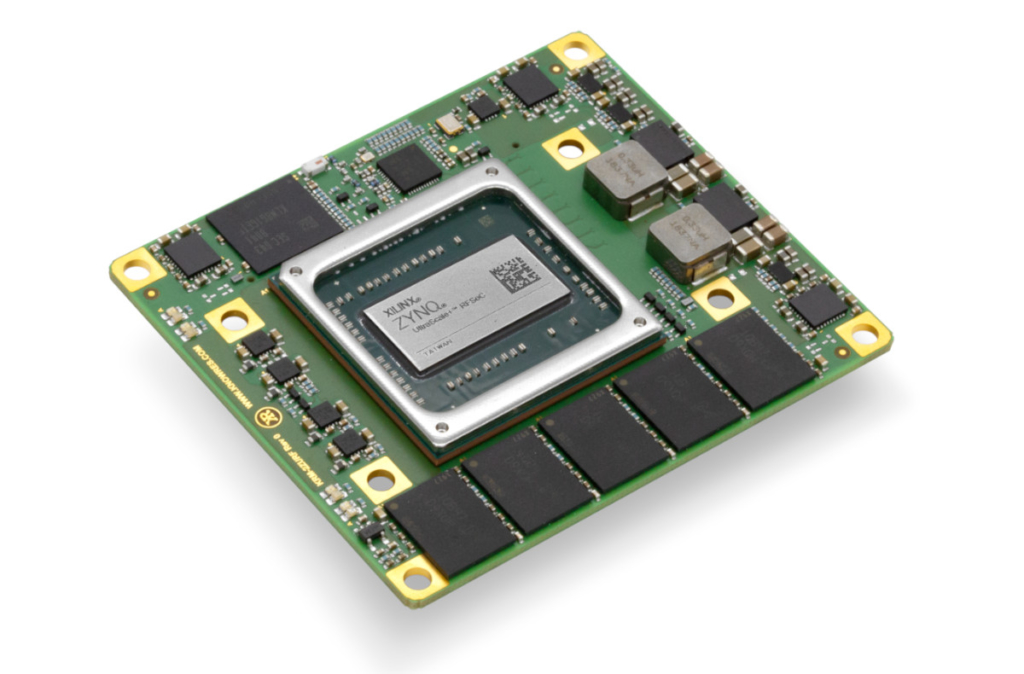

KRM-2ZU67DR Module with AMD RFSoC DFE
The RFSoC DFE family of AMD features an enhanced analog bandwidth of 7.125GHz, up from 6GHz on Gen3 devices and 4GHz of Gen1 RFSoC devices. With the additional bandwidth, higher Nyquist zone applications become feasible. The DFE hard IP and Low Phy hard IP blocks such as Channel filter, DUC/DDC, MIXER, FFT and iFFT and several more, implement common functions in an energy efficient way. The balanced blend of hard IP and sizeable FPGA fabric with almost 500k System Logic cells and more than 1800 DSP Blocks, makes this family exceptionally capable in a broad range of wireless applications. Wrapped in our reliable system design and implemented in a very compact 65x75mm from factor, the KRM-2 SoM is the perfect choice for a quick and easy way to deploy this marvel of a chip.
Key Features:
SoC FPGA
Xilinx XCZU67DR-2FSVE1156-E
Processing System
Quad Core ARM Cortex™-A53
DUAL Core ARM Cortex™-R5
Memory Options
72 bit DDR4 PS ECC RAM 8GB @ 2.4GTs
48 bit DDR4 PL RAM 6GB @ 2.4GTs
eMMC up to 64 GB
1 Gb QSPI
Module I/O
8x RF ADC 2.95 GSPS
2x RF ADC 5.9 GSPS
8x RF DAC 6.554/10.000 GSPS
24 HD I/O (1 bank 1V8 to 3V3)
52 PS MIO (2 banks 1V8 to 3V3
8 GTY transceivers to 32Gb/s
4 PS GTP transceivers to 6.6 Gb/s
Power
12V input (11.5V – 12.5V)
Dimensions
75 x 60 mm
Matching Carriers
Downloads
Alternative Modules
Compatible Modules:
The KRM-2ZU67DR is currently the only available FPGA module in this form factor
