KRM-3Z7020 CLG SoC Module

Description

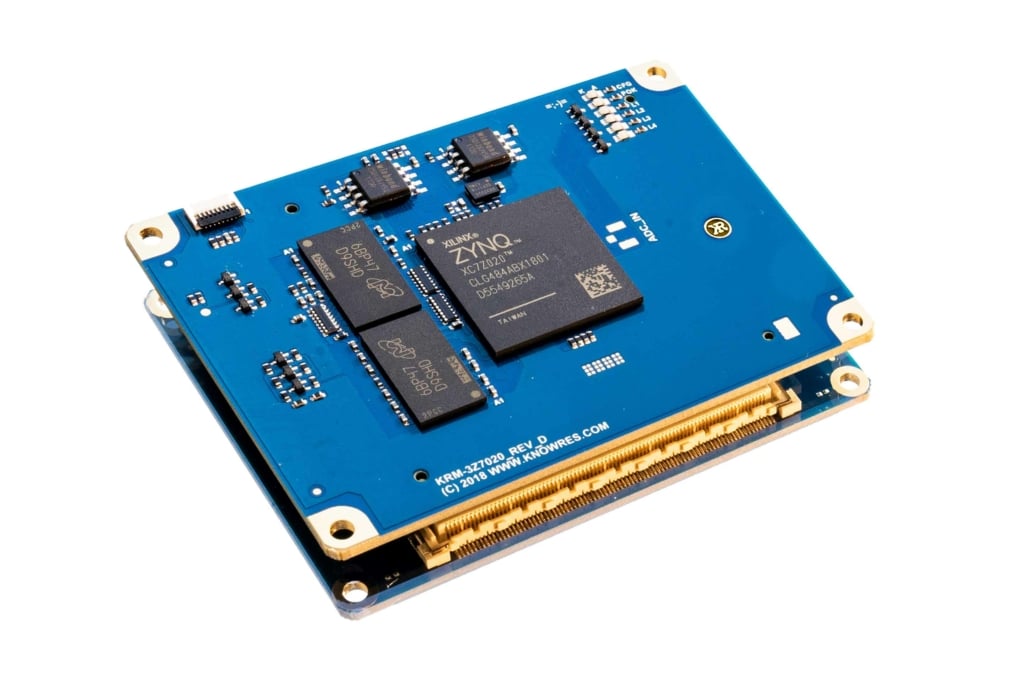

KRM-3Z7020 Module with AMD Zynq 7000 SoC

A compact, mid-range low power module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all  FPGA and RAM voltages are generated on board. Everything from power sequencing,  configuration and clock generation is implemented on board.

Key Features:

• AMD Zynq XC7Z020-1CLG484C
• Dual core A9 Processors
• 2 Instances of 256Mb x16 LP DDRIII RAM @1066MHz (1GB total)
• 256Mb config memory, two times 4X SPI memory
• 4 application status LED
• On connectors:
  • 4x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
  • MIO 16 through 53 available on I/O connector
  • Dedicated PS Reset In
  • Dedicated CFG OK out
  • JTAG
• 33.33MHz Clock
• Reserved pins for 8x MGT + 2x ref Clock => pin compatible with MGT capable modules
