KRM-3Z7045 FBG SoC Module

Description

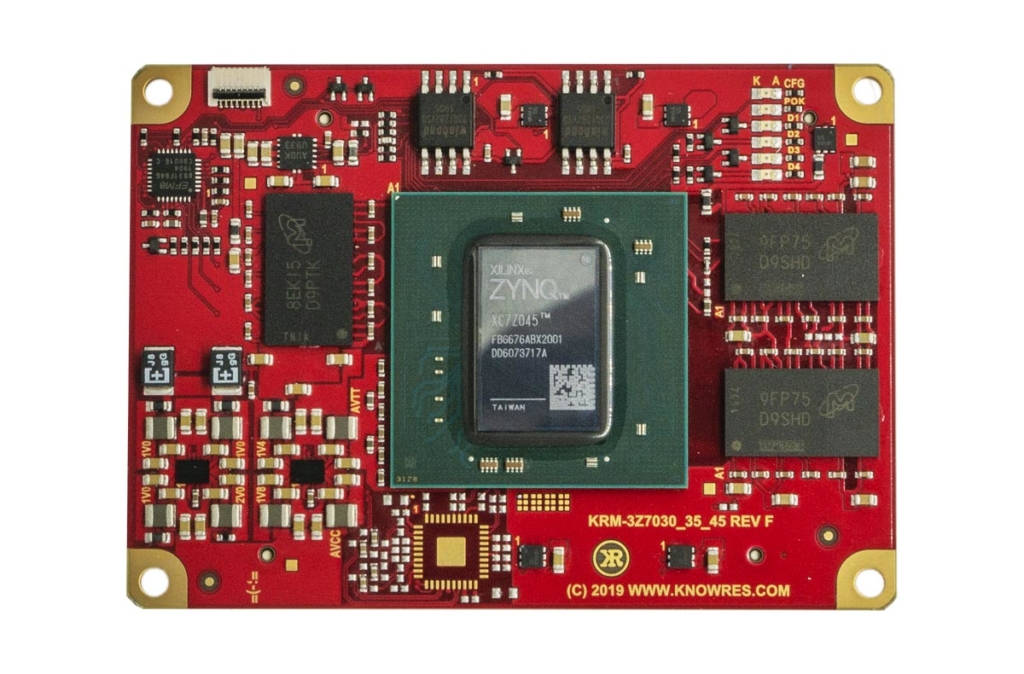

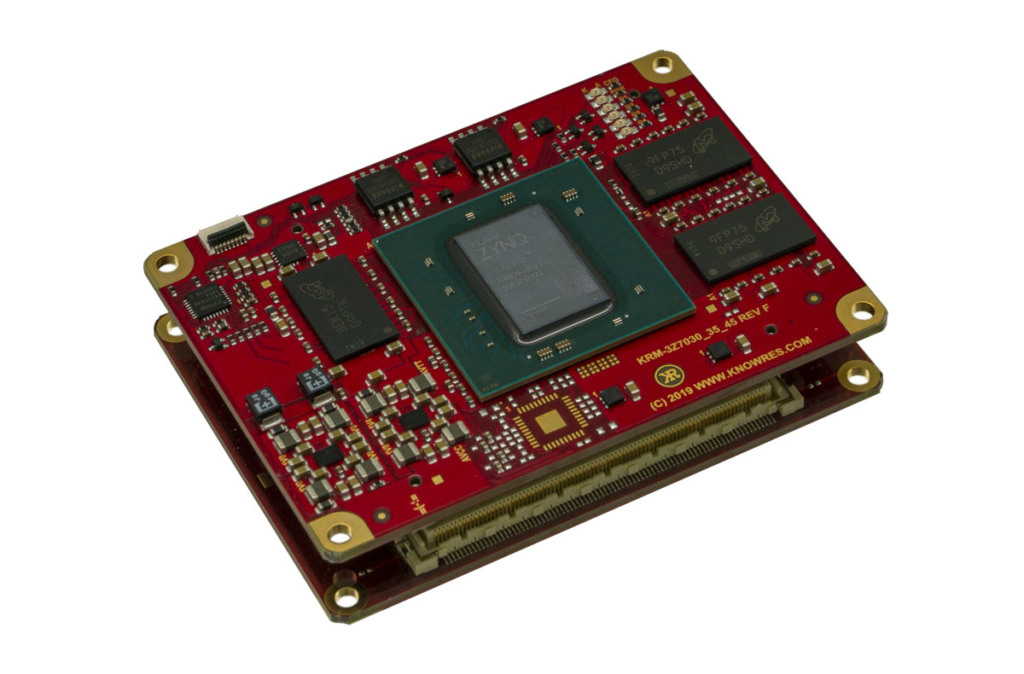

KRM-3Z7045 Module with AMD Zynq 7000 SoC

A compact, low power Zynq module that features the most commonly used features in an easy to integrate 50mm x 70mm form factor. Only a 3.3V supply is required as all FPGA and RAM voltages are generated on board. Everything from power sequencing, configuration and clock generation is implemented on board. The “Config done”  pin indicates the ready state of the module. Key Features:

• AMD Zynq XC7Z045-1FBG676C
• Dual core A9 Processors
• 2 Instances of 256Mb x16 LP DDRIII RAM PS @1066MHz (1GB total)
• 1 Instance of 128Mb x16 LP DDRIII RAM PL @1333MHz (256MB total)
• 256Mb config memory, two times 4X SPI memory
• 4 application status LED
• On connectors:
  • 4x 48 pin I/O banks pin GPIO, I/O voltage is user selectable for each bank
  • MIO 16 through 53 available on I/O connector
  • 8x MGT at 6Gbit
  • 2x MGT refclock input
  • Dedicated PS Reset In
  • Dedicated CFG OK out
  • JTAG
• 33.33MHz Clock
