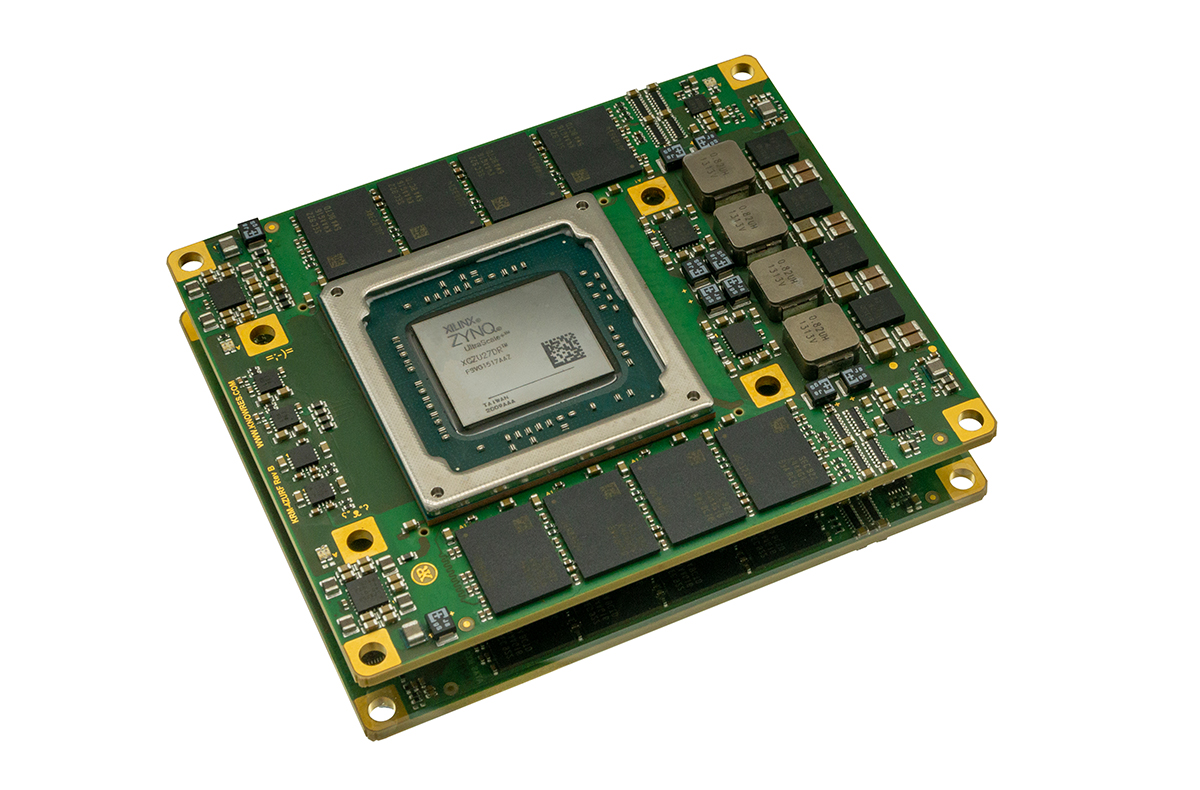

KRM-4ZU47DR

A compact, high end module that features the Xilinx RFSoC embedded in a most versatile design so that it can be optimally utilized in a multitude of applications.  Only a 12V supply is required as all  FPGA and RAM voltages are generated on board. Everything from power sequencing,  configuration and clock generation is implemented on board. The Dual 64Bit PL DDR4 RAM, operating at 2.4GT/s, provides the highest PL memory bandwidth of any currently available RFSoC module . Sixteen 28Gbit transceivers provide ample connectivity, on board dual QSPI and eMMC memories allow for a multitude of boot options and storage.

Key features:

• Xilinx Zynq XCZU47DR
• Quad core A53 64 bit processors
• 4-8 GB of PS RAM @ 2400 MHz
• 2x 4-8GB of PL RAM @ 2400 MHz
• 1Gb QSPI configuration flash
• 8GB eMMC
• 8x High-speed RF ADC’s @ 5.000 Gs
• 8x High-speed RD DAC’s @ up to 10.000 Gs
• 16x 32-Gbit PL Transceivers
• 4x 6-Gbit PS transceivers
• On connectors:
  • 2 x HD banks
  • 2x MIO Bank
  • BMC console
  • Transceivers
  • Analog
  • JTAG
• Clock Synthesizer
  • On module low jitter Clock synthesizer for Transceivers
