Main Product Highlights:
-AMD RFSoC GEN3 Ultrascale+ series
-16x 2.5 GSample ADCs
-16x up to 10.00 GSample DACs
-16 x 28 Gbit Transceivers
-2x 72 bit PL DDR4 8 GB @ 2.4 GT/s
KRM-6ZU49DR RFSoC Module
Description
KRM-6ZU49DR RFSoC Module with AMD RFSoC GEN3

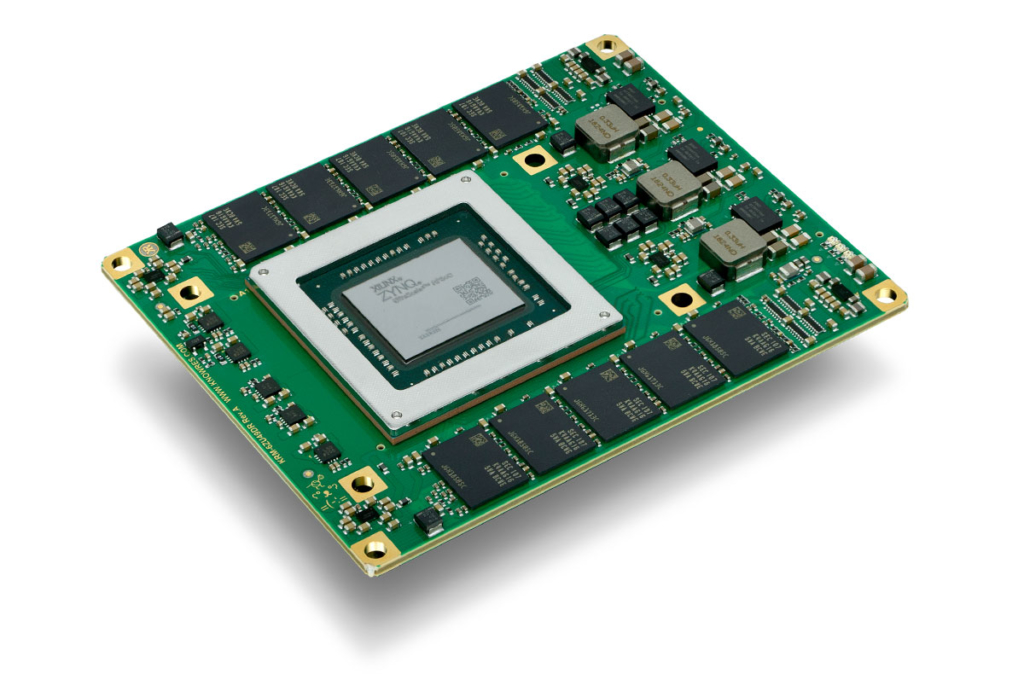

The KRM-6ZU49DR RFSoC module is based on the AMD RFSoC Gen3 family and offers 16CH ADC and 16DAC channels. Driven by the higher pin-count FPGA package, the module is slightly larger than our original KRM-4 SoM family. The extra space allowed us to incorporate ECC on both PL RAM interfaces, and the optimization of the connector pinning provides additional PL I/O. High speed data access is provided by 16 lanes of GTY transceivers at up to 28Gbs.
The module operates from a single 12V supply, and features the same housekeeping bus as all of KR’s recent FPGA SoMs, easing their integration into complex systems such as phased array radar or MIMO designs.
Easy Evaluation
For easy evaluation we also offer our KRC-6000 carrier kit with comprehensive example designs and complete accessories. The kit features a power supply, JTAG adapter, and RF and QSFP+ cables and a cooling solution for lab applications.
Key features:
RFSoC FPGA
AMD Zynq XCZU49DR
Processing System
Quad core A53 64 bit processors
Memory Options
8 GB of PS RAM @ 2400 MHz ECC
2x 8GB of PL RAM @ 2400 MHz ECC
1Gb QSPI configuration flash
8GB eMMC
Module I/O
16x High-speed RF ADCs @ 2.5 Gs
16x High-speed RF DACs @ up to 10.0 Gs
16x 32-Gbit PL transceivers
4x 6-Gbit PS transceivers
On connectors:
- 3 x HD banks
- 2x MIO Bank
- BMC console
Clock Synthesizer
On module low jitter Clock synthesizer for Transceivers
Additional information
| SoC Architecture | AMD Zynq™ UltraScale+™ XCZU49DR (Gen3) |
|---|---|
| RF-ADC Channels | 16x 2.5 GSample/s |
| RF-DAC Channels | 16x up to 10.0 GSample/s |
| PS Memory | 8 GB DDR4 @ 2400 MHz with ECC |
| PL Memory | 16 GB Total (2x 8GB 72-bit DDR4 @ 2400 MHz with ECC) |
| Storage | 1Gb QSPI Flash + 8GB eMMC |
| PL Transceivers | 16x 32-Gbit High-speed lanes |
| PS Transceivers | 4x 6-Gbit lanes |
| Clocking | On-module low-jitter synthesizer for Transceivers |
| User I/O | 3x HD Banks + 2x MIO Banks |
| Power Input | Single 12V Supply |
| System Management | BMC Console + Universal Housekeeping Bus |
Variants
| MODULE | Q 1-25 | MOQ |
|---|---|---|
| KRM-6ZU49DR 3x 8GB RAM -2E | € price upon request | 1 |
| KRM-6ZU49DR 3x 8GB RAM -2I | € price upon request | 1 |
Inquire for prices of larger quantities or other memory configurations and lead times
MOQ1 also indicates that sample stock is usually available with no lead time.
Matching Carriers
Downloads
For more information, please use the INQUIRE button above.
Alternative Modules
Compatible Modules:
The 49DR is the only variant offered in this form factor.
